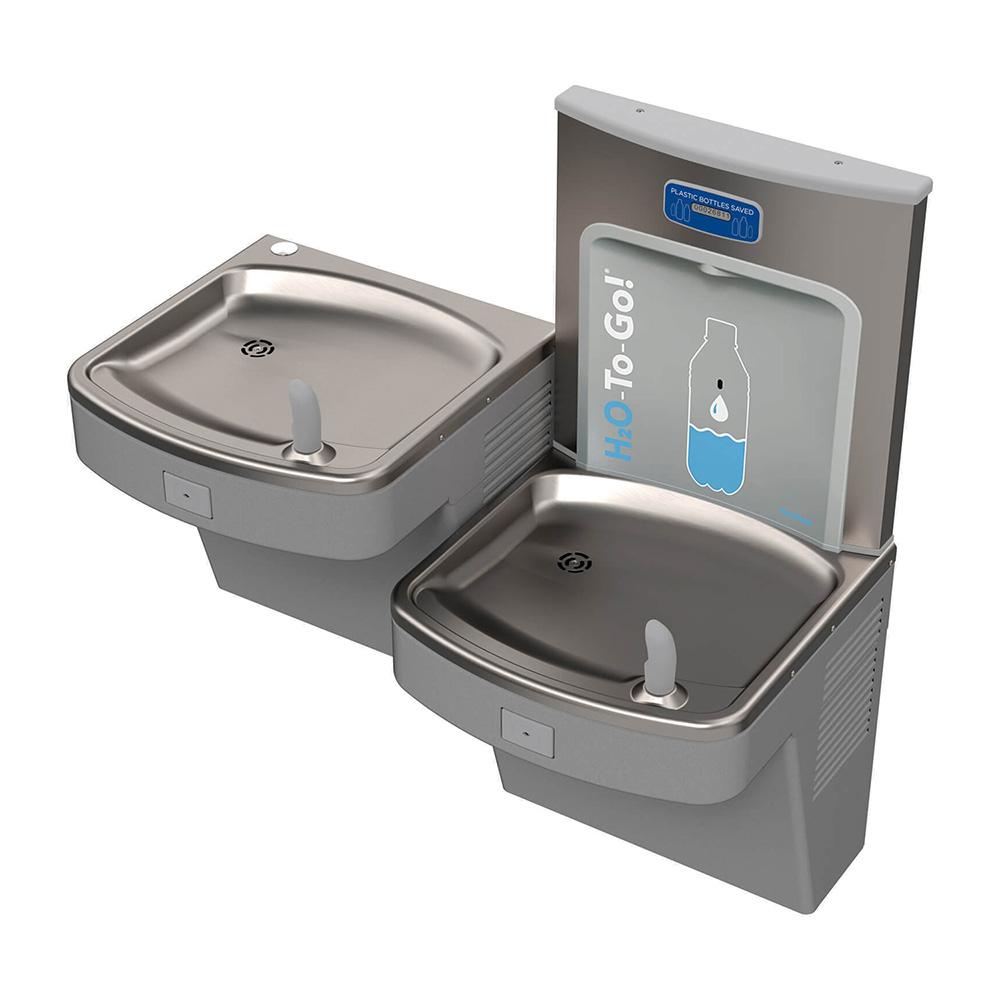

Wall-Mount Gray ADA Bi-Level Drinking Fountain and Deck-Mount Bottle Filling Station Combo with 1500 Gal EZ Door Filter, A17 Series

Wall-mounted bi-level A17 Series drinking fountain and deck-mounted H2O-to-Go!® bottle filler combo with 1500 gal EZ Door® filter.

Includes:

• 1500 Gallon water filter kit with EZ Door® assembly (WF1EZ)
• Wall-mounted bi-level drinking fountain, 8 GPH, pushbutton activation, textured gray finish (A172108F-UG)
• Deck-mounted bottle filling station with counter display, sensor operated, 1.00 GPM, includes bottle counter (BF12-BCD)

Electric Water Cooler

• Rough-ins match other
• Child or adult ADA compliant (when properly installed)
• Sensor with a maximum run time of 10 seconds or less
• Universal bi-level - can be installed left high or right high
• Flexible, low flow, antimicrobial, anti-rotation, non-squirt bubbler
• Hands-free sensor with easy reach, wave-on / wave-off operation
• Apron, one-piece bottom wrapper is a textured gray powder coat finish
• Lead-free in-unit refrigeration rated at 8 gallons (30.3 liters) per minute
• Auto-stop allows cartridge and strainer service without shutting off water supply
• ANSI/ASHRAE 18, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada), CE compliant for 220 V electrical, Lead-Free Federal Law 111-380, cUPC

Bottle Filler

• ADA compliant
• Stainless steel
• 100-mesh inlet strainer
• Hands-free sensor operation
• 120 VAC/9.0 VDC Plug-in transformer
• 1 Gallon (3.79 liters) per minute fill rate
• Sensor has a 20 seconds maximum run time
• Laminar flow water supply from the water cooler
• Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61
• Digital bottle counter display indicating the quantity of 16 oz (0.47 liters)
• Compatible with A17 and A19 water coolers/drinking fountains, as well as certain models from other manufacturers
• Displays the water filter status and includes LED Light to illuminate and brighten the bottle fill area when a bottle is detected

Water Filter

• 30-Second filter replacement
• Complies to NSF/ANSI 42+53
• Flow rate of 0.5 gpm (1.9 LPM)
• 1500-Gallon lead, chlorine, and cyst reduction filter
• Optionally available for new A171 & A172 Series models
• Filter shall adhere to NSF/ANSI 42+53 with a lead reduction to one (1) micron
• Retrofits existing A171 and A172 Series models (manufactured after October 2022)
• Complete assembly kit with all components for easy installation - including initial filter
• The filter shall be for cold water use only and operate at temperatures of 35°F - 100°F (2°C - 38°C). Operating pressure is not to exceed 125 psig
