Hoffman Specialty

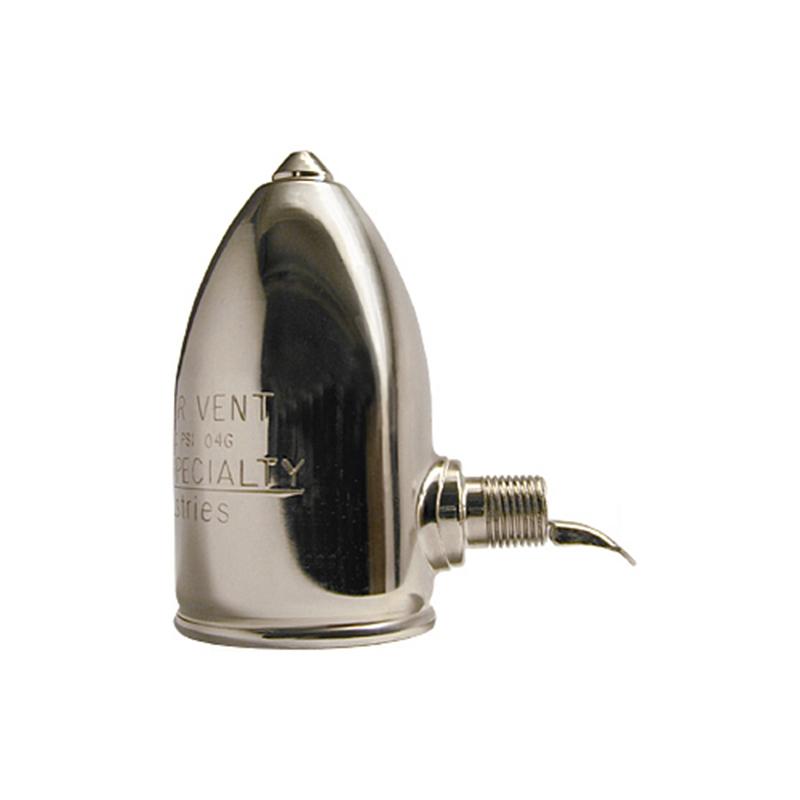

Steam Radiator Air Vent, 1/8 Inch Angle, Non-Vac
Detailed Description
A steam radiator air vent designed for use in low‑pressure, one‑pipe steam heating systems. This float‑type air valve automatically releases trapped air from radiators, allowing steam to circulate efficiently and ensuring even heat distribution throughout residential and commercial spaces. Featuring a 1/8 inch NPT angle connection, the vent is compact and easy to install on standard radiator tappings. Its float‑actuated design opens to discharge air during system startup and closes when steam reaches the vent, preventing steam loss and maintaining system efficiency. It is equipped with a single, non‑adjustable port, making it ideal for systems that do not require proportional venting control. It is designed to operate at pressures up to 6 PSIG, with a maximum pressure rating of 10 PSIG, making it suitable for typical low‑pressure steam heating applications.
Features & Benefits
- Maximum operating pressure of 6 PSIG
- Compact size for easy installation in tight spaces
- Improves heating efficiency by eliminating trapped air
- Single non‑adjustable vent port for consistent operation
- Non‑vacuum design suitable for standard steam systems
- 1/8 inch NPT angle connection for standard radiator installations
- Designed for one‑pipe steam heating systems without proportional venting needs
Specifications
| Manufacturer (Brand) | Hoffman Specialty |
|---|---|
| Manufacturer Item Number | 401440 |
| Weight (lb) | 0.2 |
| Package Quantity | Each |
| Dimensions | 1/8 inches |
| Feature | Genuine OEM |
| Model Number | 40 |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov |
