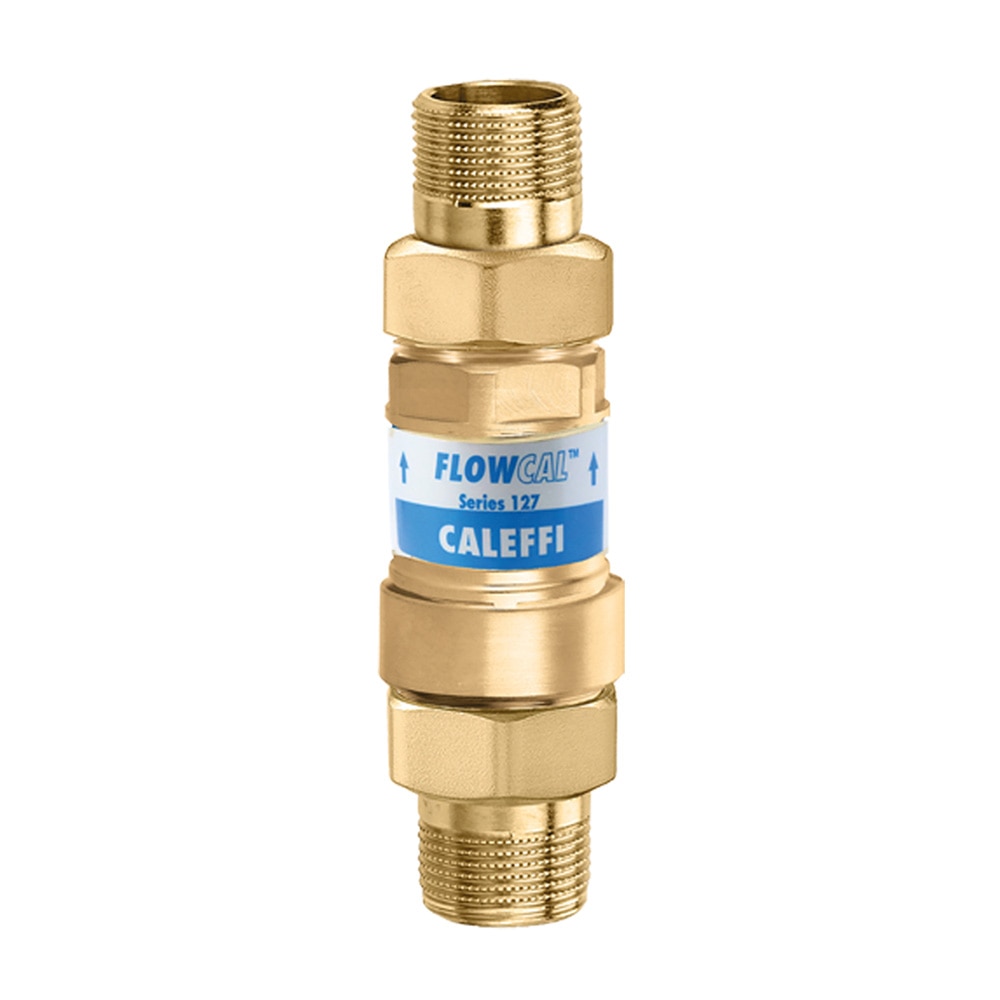

FlowCal™ 3/4 In Male Compact Automatic Recirculation Balancing Valve (NPT), Series 127

Balancing hydronic circuits is crucial for achieving optimal system performance and efficiency, thereby meeting desired comfort levels. This FlowCal compact automatic recirculation balancing valve automatically maintains the design flow rate to each terminal unit despite changing differential pressure changes across the circuits. With an exclusive scale-resistant, low-noise cartridge and compact body, FlowCal is ideal for controlling flow to fan coils, baseboards, radiators, or plumbing fixtures in hot water recirculation systems. Balancing is fast, easy, and efficient.

• Flow accuracy: ±10%
• Spring: stainless steel
• Seals: peroxide-cured EPDM
• Medium: water, glycol solutions
• Max. percentage of glycol: 50%
• Flow cartridge: anti-scale polymer
• Max. working pressure: 232 psi (16 bar)
• Body: DZR low-lead brass (<0.25% Lead content)
• Working temperature range: 32-212° F (0-100° C)
• Differential Pressure Control Ranges: 2-14, 2-32, 4-34, 5-35 psid
• Flow Rate: 21 fixed flow rate settings ranging from 0.35 - 10 GPM
• Lay length (press connection): size ½ and ¾ inch: 3-5/8 inch size 1 inch: 4-1/16 inch
• Connections: 1/2 inch, 3/4 inch and 1inch NPT male, sweat, press, PEX crimp, and PEX expansion union
• Certifications 1. NSF/ANSI/CAN 372, Drinking Water System Components-Lead Content Reduction of Lead in Drinking Water Act, California Health and Safety Code 116875 S.3874, Reduction in Drinking Water Act, Vermont Act 193 - The Lead in Plumbing Supplies Law and Maryland’s Lead Free Law HB.372, certified by ICC-ES, file PMG-1360. 2. PEX crimp fittings certified to ASTM F 1807. 3. PEX expansion fittings certified to ASTM F 1960.
