Leonard Valve Company

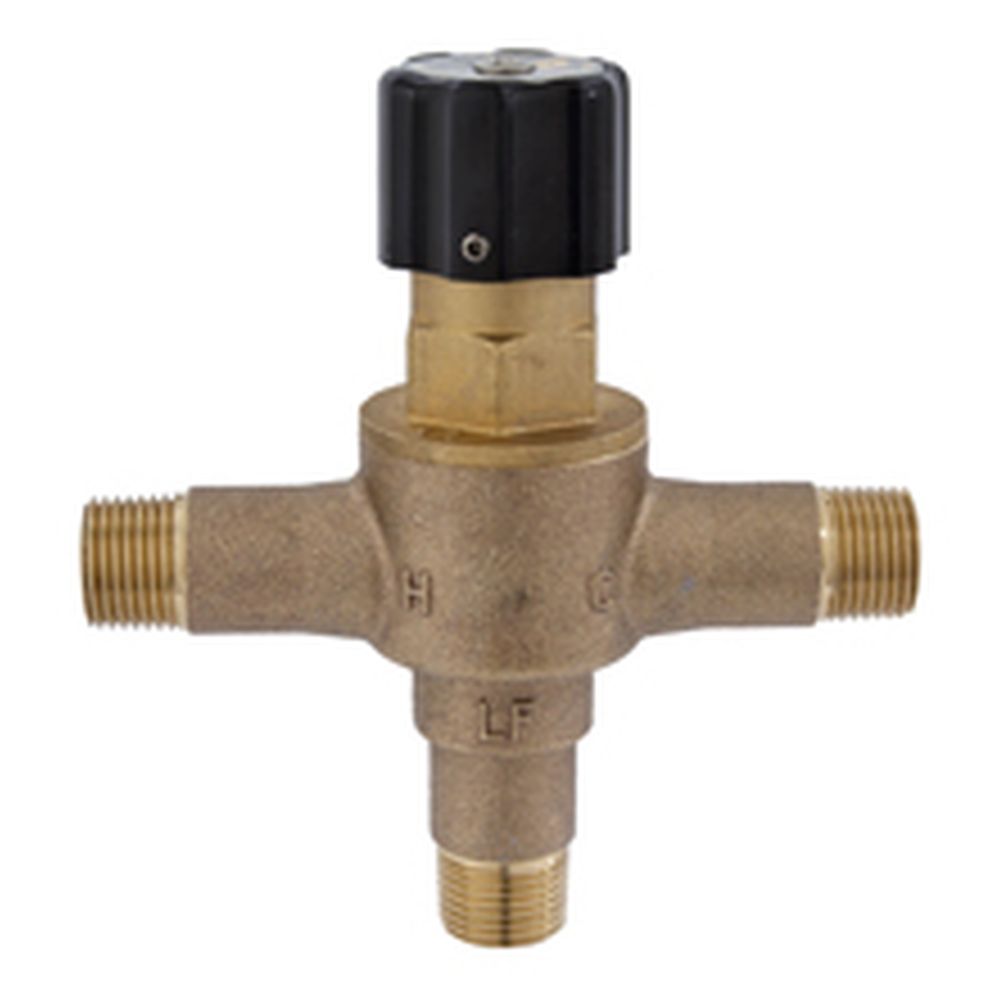

Exposed Point of Use Mixing Valve, 1/2 Inch, Lead Free, Mounting Bracket Included
Detailed Description
ECO-MIX Lead Free Bronze body
Locked temperature adjustment cap (vandal resistant)
Copper encapsulated thermostat assembly with polymer thermoplastic shuttle
Stainless steel springs
Buna-N: O-rings
Integral check valves on hot and cold inlets
PRESSURE-TEMPERATURE:
Minimum Flow:0.25 GPM (0.95 l/Min)
Maximum Pressure:125 PSI (8.6 BAR)
Maximum Hot Water temperature: 200°F- (93°C)
Approach Temperature 5°F(2.8°C) above set
point.
Locked temperature adjustment cap (vandal resistant)
Copper encapsulated thermostat assembly with polymer thermoplastic shuttle
Stainless steel springs
Buna-N: O-rings
Integral check valves on hot and cold inlets
PRESSURE-TEMPERATURE:
Minimum Flow:0.25 GPM (0.95 l/Min)
Maximum Pressure:125 PSI (8.6 BAR)
Maximum Hot Water temperature: 200°F- (93°C)
Approach Temperature 5°F(2.8°C) above set
point.
Specifications
| Manufacturer (Brand) | Leonard Valve Company |
|---|---|
| Manufacturer Item Number | 270-LF-BRKT |
| UOM | Eaches |
| Flow Rate | 0.25 GPM |
