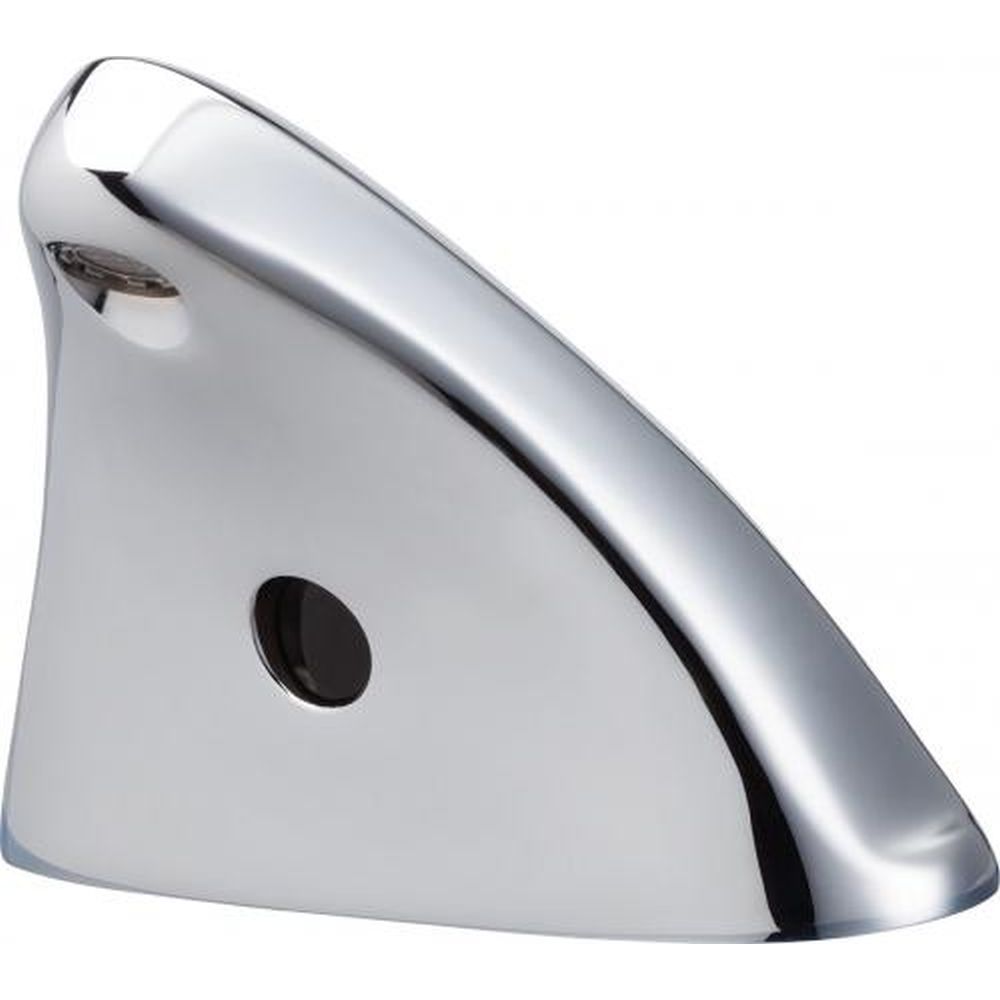

ELR Series Touchless Ligature Resistant Lavatory Faucet

Electronic ligature resistant lavatory faucet. The ELR Series resists attachment of cord, rope, bed sheet, or other material that may result in injury or loss of life.

• Polished chrome
• 4 Inch fixed centers
• Includes long term power system (LTPS) - DC
• Dual supply for hot and cold water; flexible supply hoses included
• Pre-assembled with concealed internal temperature control mixer
• Pressure compensating Econo-Flo™ non-aerating spray outlet 0.5 GPM
• ELR control box assembly concealed mechanical mixing valve
• Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
• Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App
• 40 Second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds. Reactivate the faucet by removing hands from the sensor for at least 10 seconds
