Chicago Faucets

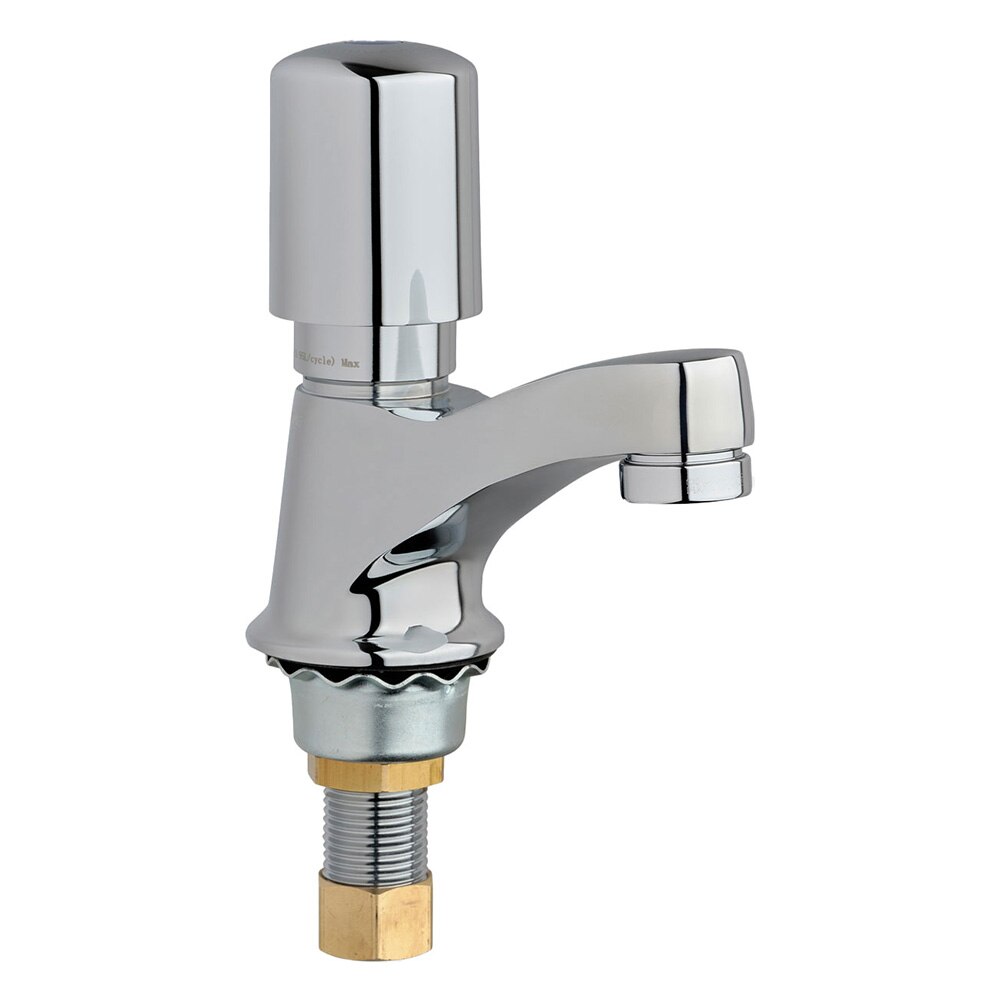

Deck-Mounted Metering Sink Faucet, Single Hole, Single Supply, 333 Series
Detailed Description
Durable, deck-mounted metering faucet designed for single-hole, single-supply installations. Engineered for high-traffic environments, it features a vandal-proof design and a pressure-compensating Econo-Flo™ laminar spray that delivers consistent water flow at 0.5 GPM. Its MVP® metering cartridge ensures water conservation with an adjustable run time from 2 to 25 seconds, making it ideal for commercial restrooms and public facilities. Built with ECAST® low-lead brass construction, this faucet complies with ADA, CALGreen, and NSF standards for safety and sustainability.
Features & Benefits
- Single-hole, deck-mounted configuration
- ECAST® construction with ≤0.25% lead content
- 1/2 Inch NPSM inlet with coupling nut for flexible risers
- Operating pressure: 20–125 PSI; temperature: 40–140°F
- 0.5 GPM Econo-Flo™ non-aerating laminar spray (E2805JKABCP)
- Vandal-proof 2-inch MVP® push handle with index button (765-PSHJKCP)
- Complies with ADA ANSI/ICC A117.1, CALGreen, NSF/ANSI 61 & 372
- Includes mounting hardware and a limited lifetime warranty on the faucet
- Chrome-plated cast brass spout with 3-3/8 inch center-to-center reach
- MVP self-closing metering cartridge with adjustable cycle time (2–25 seconds)(667-780KJKABNF)
Specifications
| Manufacturer (Brand) | Chicago Faucets |
|---|---|
| Manufacturer Item Number | 333-E2805-765PSHAB |
| UPC | 611943188917 |
| Weight (lb) | 1.75 |
| UOM | Eaches |
| Finish | Polished Chrome |
| Mounting Style | Deck Mount |
| Feature | Genuine OEM |
| Model Number | 333 Series |
| Operating Temperature | 40F to 140F |
| Pressure | 20 psi to 125 psi |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant ASME Certified NSF/ANSI Certified |
