MIFAB
Pressure Drop Activated Trap Seal Primer, 4-1/8 Tall x 1-1/4 MIP Inlet and Outlet, Serves Up To Six Drains at 1/2 Once Water Output
Detailed Description

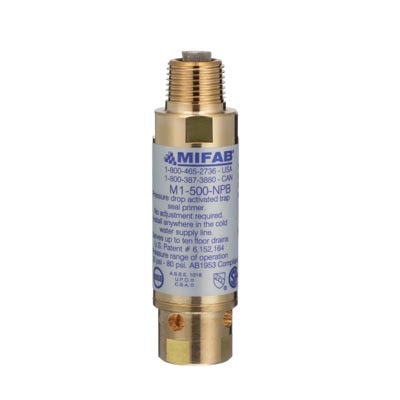

Pressure drop activated trap seal primer, 4-1/8 in tall, with 1/2 in male NPT inlet and 1/2 in female NPT outlet.
Features & Benefits
- Serves up to six drains at 1/2 once water output
- Trap seal primers can be disassembled in the field for easy cleaning and repair without risk of losing a
pre-charge - Four view holes permit easy inspection of water delivery. The holes are across from each other, enabling light at the
opposite end to illuminate the performance of the primer - A replacement stainless steel sediment filter prevents line debris from entering the primer. This can be replaced after wear and build up of debris to ensure maximum life and performance of the primer
- Only a three p.s.i. line pressure drop is required to activate the primer. Lower water volume fixtures and faucets has resulted in lower line pressure drops. A three p.s.i. performance point ensures reliable water delivery to maintain the trap seal
Specifications
| Manufacturer (Brand) | MIFAB |
|---|---|
| Manufacturer Item Number | MR-500-NPB |
| Weight | 0.56 |
| UOM | Eaches |
| Valve Size | 1 1/4 Inch |
