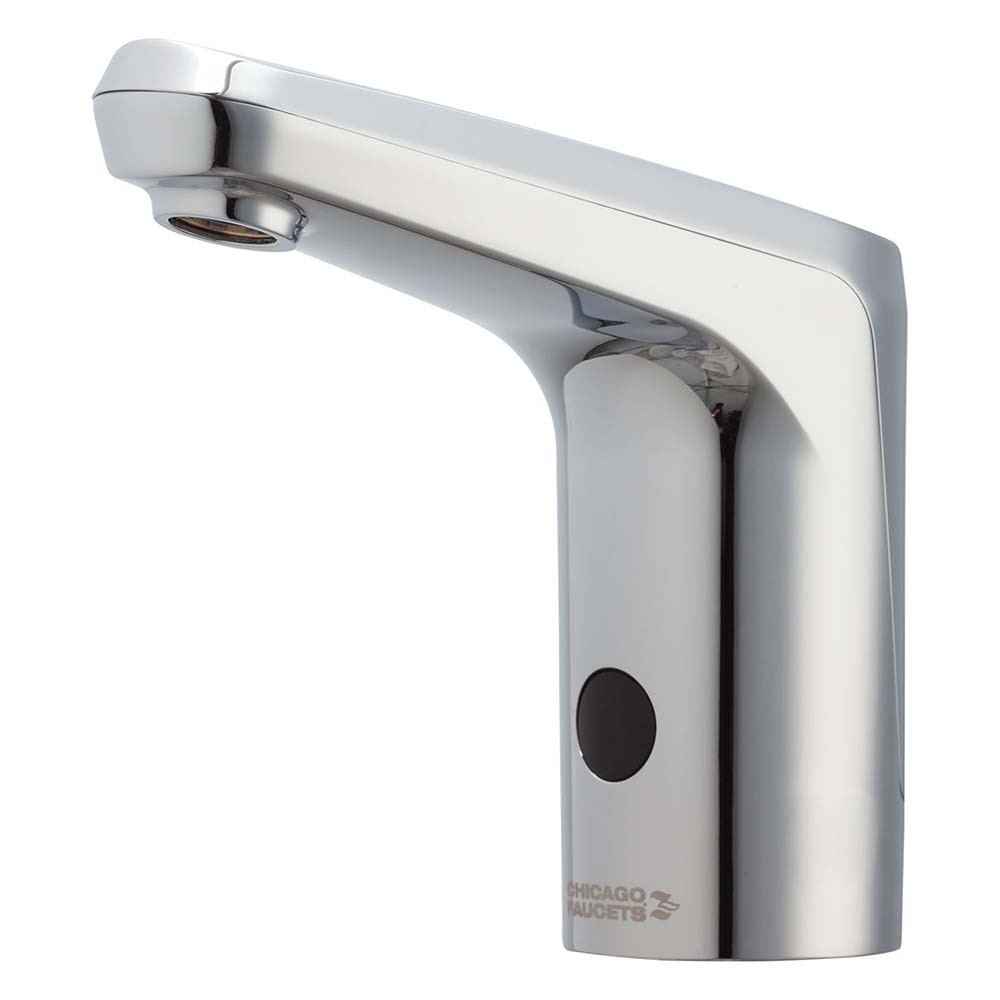

Electronic Lavatory Sink Faucet, 0.5 GPM, Touch-Free, Programmable with Above-Deck Electronics, Battery Powered, E-Tronic 80 Series
Detailed Description
A commercial-grade touchless lavatory faucet from the E-Tronic 80 Series, engineered to provide hygienic, hands-free operation in commercial restrooms, healthcare facilities, educational institutions, and other high-traffic environments. Featuring above-deck electronics and integrated Bluetooth communication, this faucet offers advanced control and monitoring capabilities while helping reduce the spread of germs through touch-free operation. The faucet incorporates a pressure-compensating Econo-Flo non-aerating laminar spray outlet that delivers an efficient 0.5 GPM flow rate for reduced water consumption. A built-in infrared sensor activates water flow when hand presence is detected and automatically stops water flow after a programmed 10-second run cycle, helping conserve water and prevent waste.
Built-in Bluetooth technology allows facility managers to adjust settings and operating modes using the CF Connect App from a smartphone or tablet. The faucet operates using an included 6-volt CRP2 lithium battery, eliminating the need for hardwired power connections and simplifying installation. Constructed from durable ECAST low-lead brass with a polished chrome finish, this faucet is designed for long-term reliability while meeting ADA accessibility requirements and commercial plumbing standards.
Features & Benefits
- Polished chrome finish
- Battery-powered operation
- ECAST low-lead brass construction
- Single-hole deck-mounted installation
- Automatic shutoff safety timeout feature
- Built-in Bluetooth communication technology
- Dual-beam infrared touchless sensor operation
- Compatible with Chicago Faucets CF Connect App
- Pressure-compensating Econo-Flo laminar spray outlet
Specifications
| Manufacturer (Brand) | Chicago Faucets |
|---|---|
| Manufacturer Item Number | E80-A11A-11ABCPT |
| UPC | 611943164799 |
| Weight (lb) | 4.029 |
| Package Quantity | Each |
| Flow Rate | 0.5 GPM |
| Finish | Polished Chrome |
| Mounting Style | Single Hole |
| Power | Battery |
| Feature | Genuine OEM |
| Model Name | E-Tronic |
| Operating Temperature | 180º F max. |
| Pressure | 20 psi to 125 psi |
| Restrictions and Compliance | see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov ADA Compliant BAA Compliant ASME Certified NSF/ANSI Certified |
