Sloan

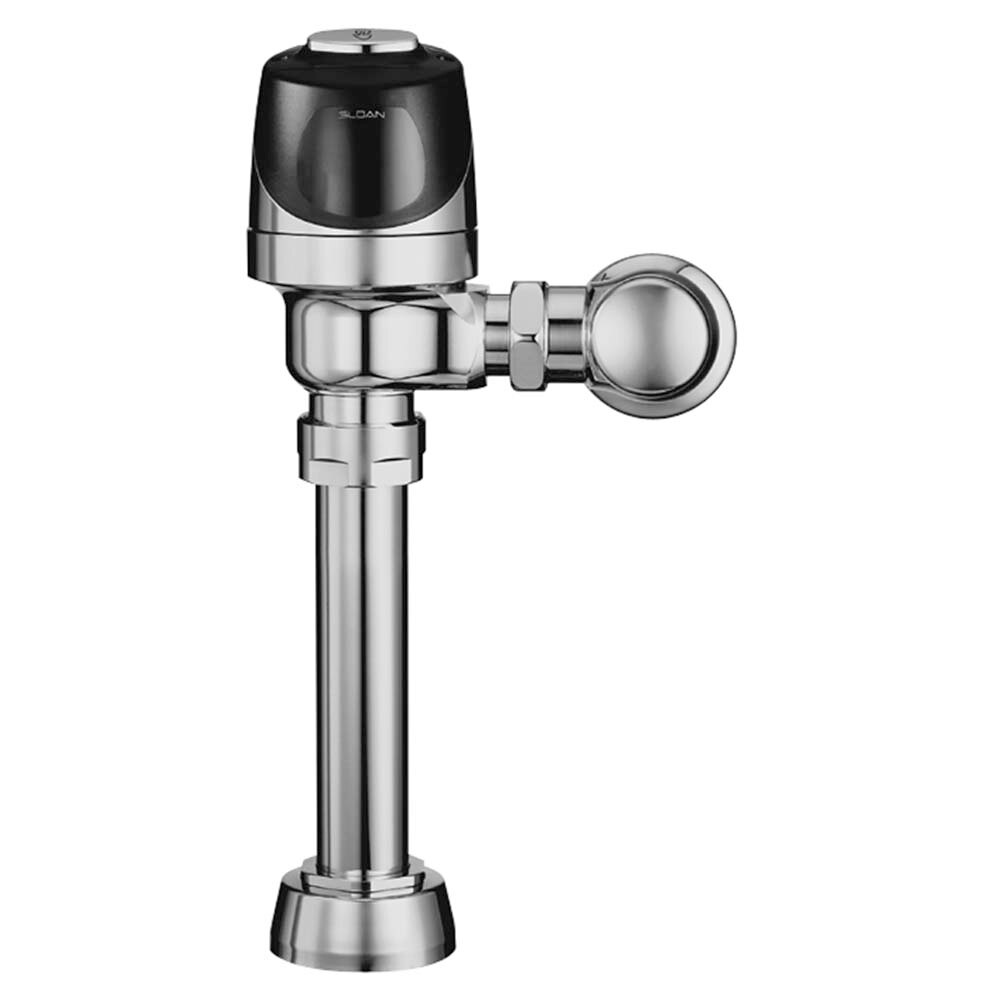

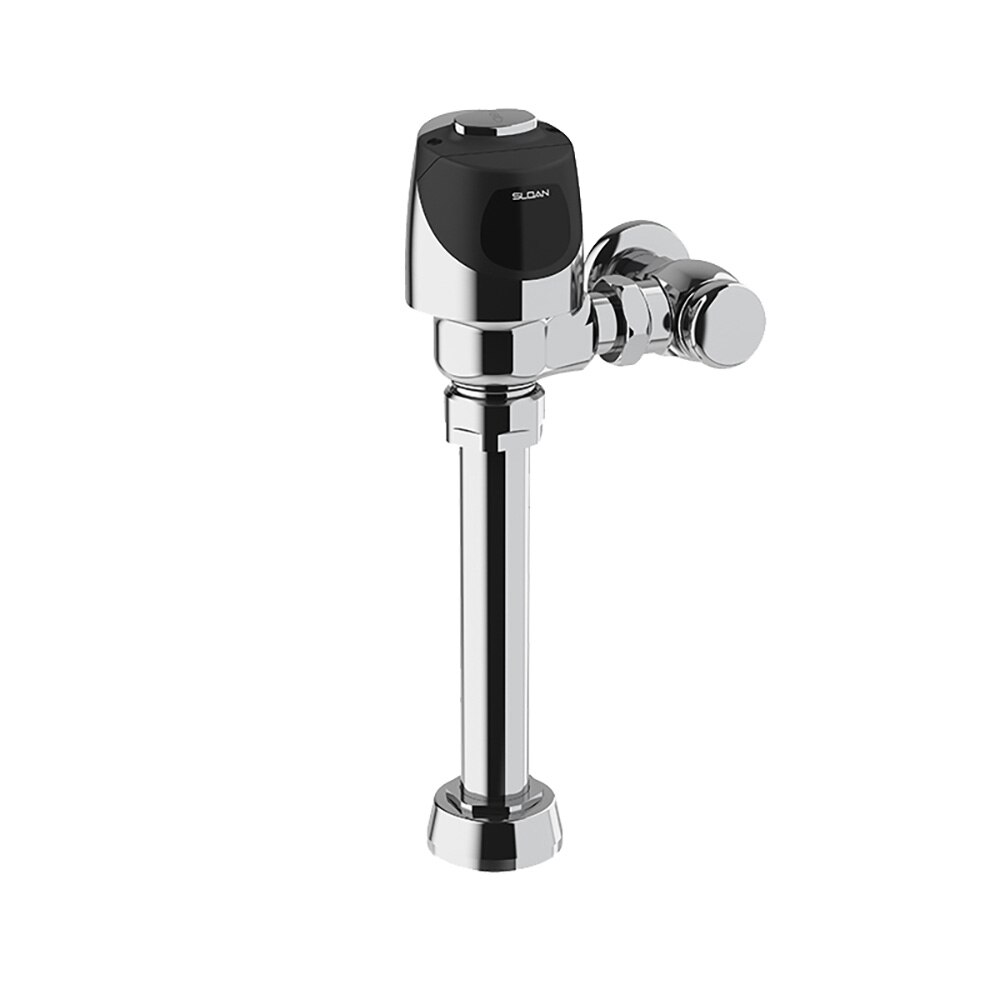

G2 Optima Plus 8111 1.6 GPF Single Flush, Battery, Exposed Sensor Water Closet Flushometer
Detailed Description
G2 Optima Plus 8111 exposed sensor 1.6 GPF water closet flushometer with polished chrome finish.
Features & Benefits
- Power Type: Battery
- Valve: Diaphragm
- Fixture Type: Water Closet
- Fixture Connection: Top Spud
- Spud Coupling: 1 ½ In (38mm)
- Supply Pipe: 1 In (25mm)
- “Low Battery” Flashing LED
- Finish: Polished Chrome (CP)
- Flush Volume: 1.6 gpf (6.0 Lpf)
- Courtesy Flush® Override Button
- Four (4) Size AA batteries included
- Valve Body Material: Semi-red Brass
- Rough-In Dimension: 11 ½ In (292mm)
- User friendly three (3) second Flush Delay
- Engineered Metal Cover with replaceable Lens Window
- Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- 1 In I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3250400 |
| UPC | 671254266094 |
| Weight | 8.18 |
| UOM | Eaches |
| Flow Rate | 1.6 GPF |
| Connection | Top Spud |
| Facility Type | Commercial |
| Water Efficiency | Low Consumption |
| Specialty Features | Electrical Override |
| Finish | Polished Chrome |
| Fixture Type | Toilet |
| Flush Mechanism | Sensor Activated, Single Flush |
| Power | Battery |
| Sensor Position | Top |
| Valve Mechanism | Diaphragm |
| Feature | Genuine OEM |
| Model Name | G2, Optima |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant BAA Compliant UPC Certified |
