Sloan

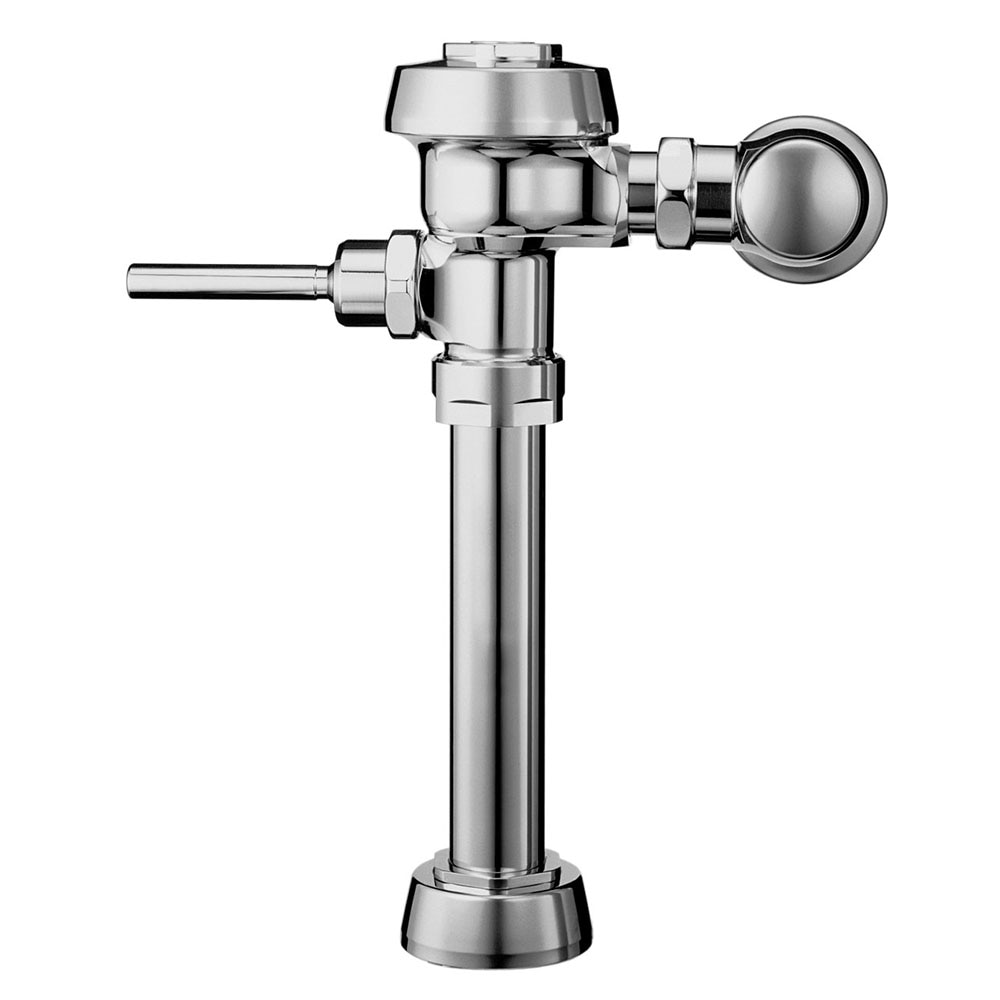

Royal 111-1.6 GPF Single Flush Exposed Manual Water Closet Flushometer
Detailed Description
Royal 1.6 GPF exposed single flush manual toilet flushometer with a top spud connection and polished chrome finish.
Features & Benefits
- Valve: Diaphragm
- Adjustable Tailpiece
- Supply Pipe: 1 in (25mm)
- Dimension: 11 ½ in (292mm)
- Spud Coupling: 1 ½ in (38mm)
- Finish: Polished Chrome (CP)
- Flush Volume: 1.6 GPF (6.0 LPF)
- Connection: Top Spud Rough-In
- Fixture Type: Water Closet Fixture
- Valve Body Material: Semi-red Brass
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
- High Back Pressure Vacuum Breaker Flush Connection with Onepiece Bottom Hex Coupling Nut
- Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3010000 |
| UPC | 671254046191 |
| Weight | 6.83 |
| UOM | Eaches |
| Flow Rate | 1.6 GPF |
| Connection | Top Spud |
| Facility Type | Commercial |
| Water Efficiency | Low Consumption |
| Finish | Polished Chrome |
| Fixture Type | Toilet |
| Flush Mechanism | Manual Flush |
| Valve Mechanism | Diaphragm |
| Feature | Genuine OEM |
| Model Name | Royal |
| Model Number | ROYAL 111-1.6 |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant cUPC Certified BAA Compliant |
