T&S Brass

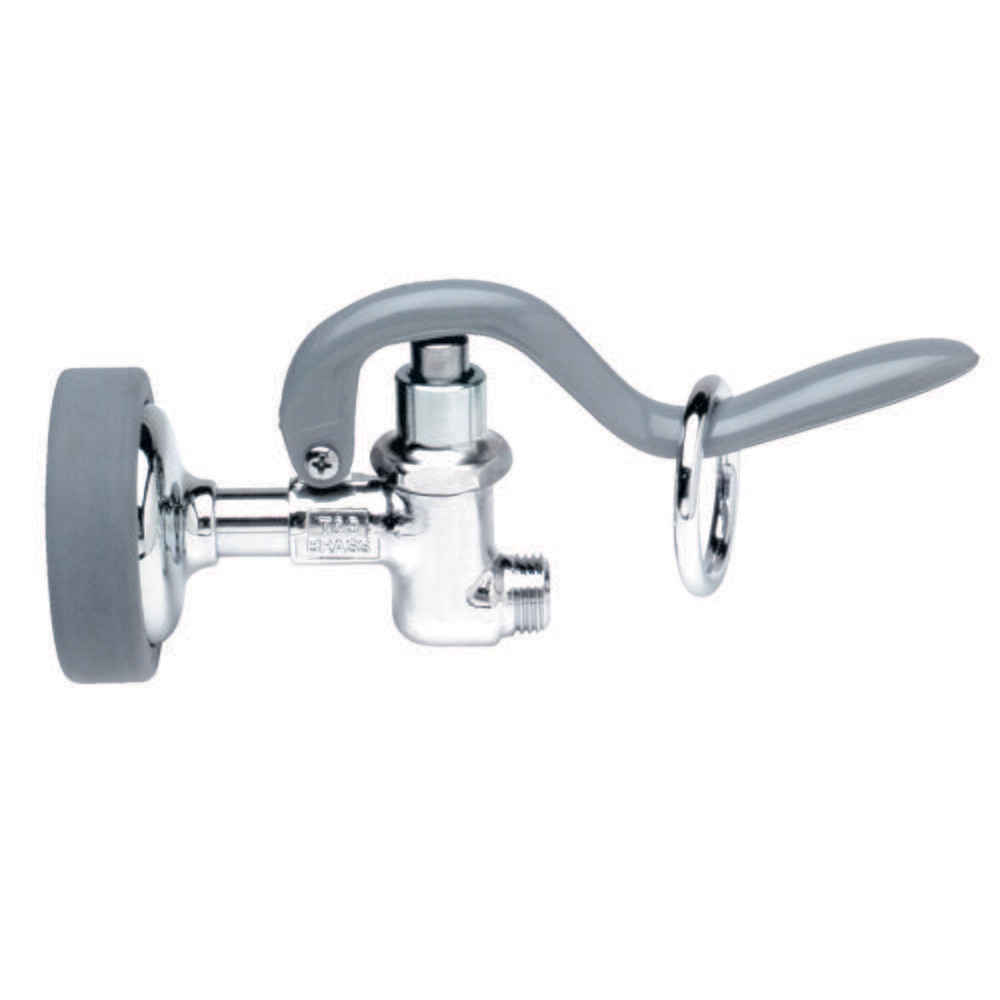

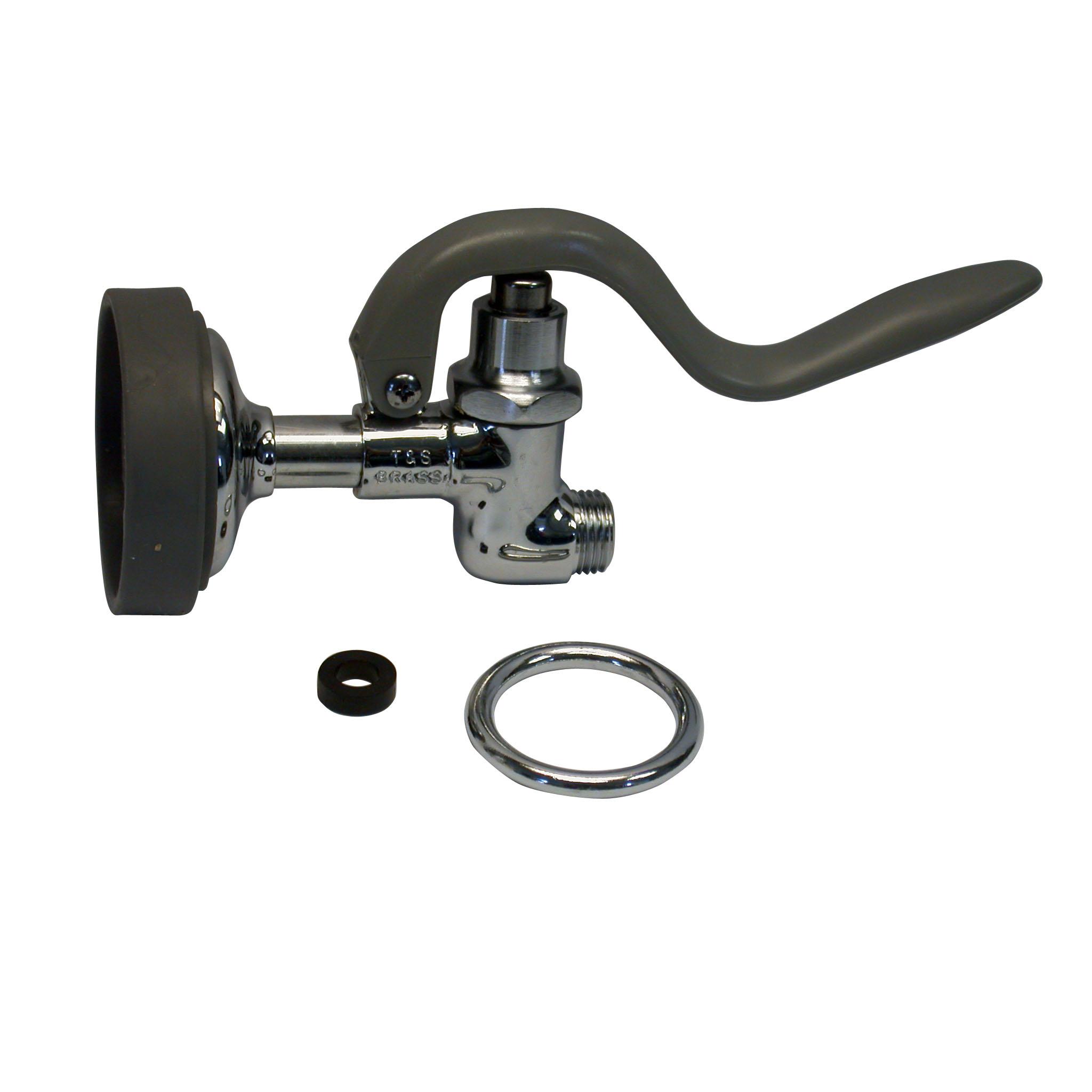

Spray Valve with Gray Rubber Bumper and DOE Spray Face, 1.15 GPM

SKU: 40190038
Mfr Part No: B-0107-M
$138.26
Sign in for preferred pricing

In-Stock Available: 2


Detailed Description

This pre‑rinse spray valve is designed for heavy‑duty use in commercial kitchens, foodservice operations, and industrial washdown applications. It delivers a controlled 1.15 GPM spray to support efficient rinsing while helping operators manage water usage during daily cleaning tasks. The valve features a polished chrome‑plated brass body paired with a gray rubber bumper to help protect nearby surfaces and equipment. A self‑closing design shuts off water flow automatically when the handle is released, supporting operational control during peak workflow periods. The integrated hold‑down ring allows continuous spraying during extended rinse cycles. The spray valve connects via a 3/4‑14 UN male inlet, making it compatible with standard commercial pre‑rinse hoses and fittings. It is rated for operating pressures from 20 to 125 psi and supports temperatures up to 140 degrees Fahrenheit. Its rugged construction supports long service life in high‑use environments such as restaurants, cafeterias, and institutional kitchens.

Features & Benefits

  • Hold down ring
  • 3/4-14 UN male inlet fitting
  • Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: 20 psi (1.38 bar)
  • Temperature Max: 140 F (60℃)
  • Temperature Min: 40 F (4.44℃)
  • Shuts off when the handle is released
  • 1.15 GPM/7.5 OZ-F at 60 PSI spray valve
  • Designed for heavy-duty use in industrial kitchens
  • Material: Polished chrome plated brass body and rubber bumper
  • Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372. 2019 DOE PRSV - Class II compliant

Specifications

Manufacturer (Brand)T&S Brass
Manufacturer Item NumberB-0107-M
UPC671262000741
Weight (lb)1.237
Package QuantityEach
Flow Rate1.15 GPM
Facility TypeCommercial
FinishPolished Chrome
FeatureGenuine OEM
Restrictions and Compliance
California Residents see PROP 65 WARNING
WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
BAA Compliant
Low Lead Compliant (USA)
NSF Certified
ASME Certified
