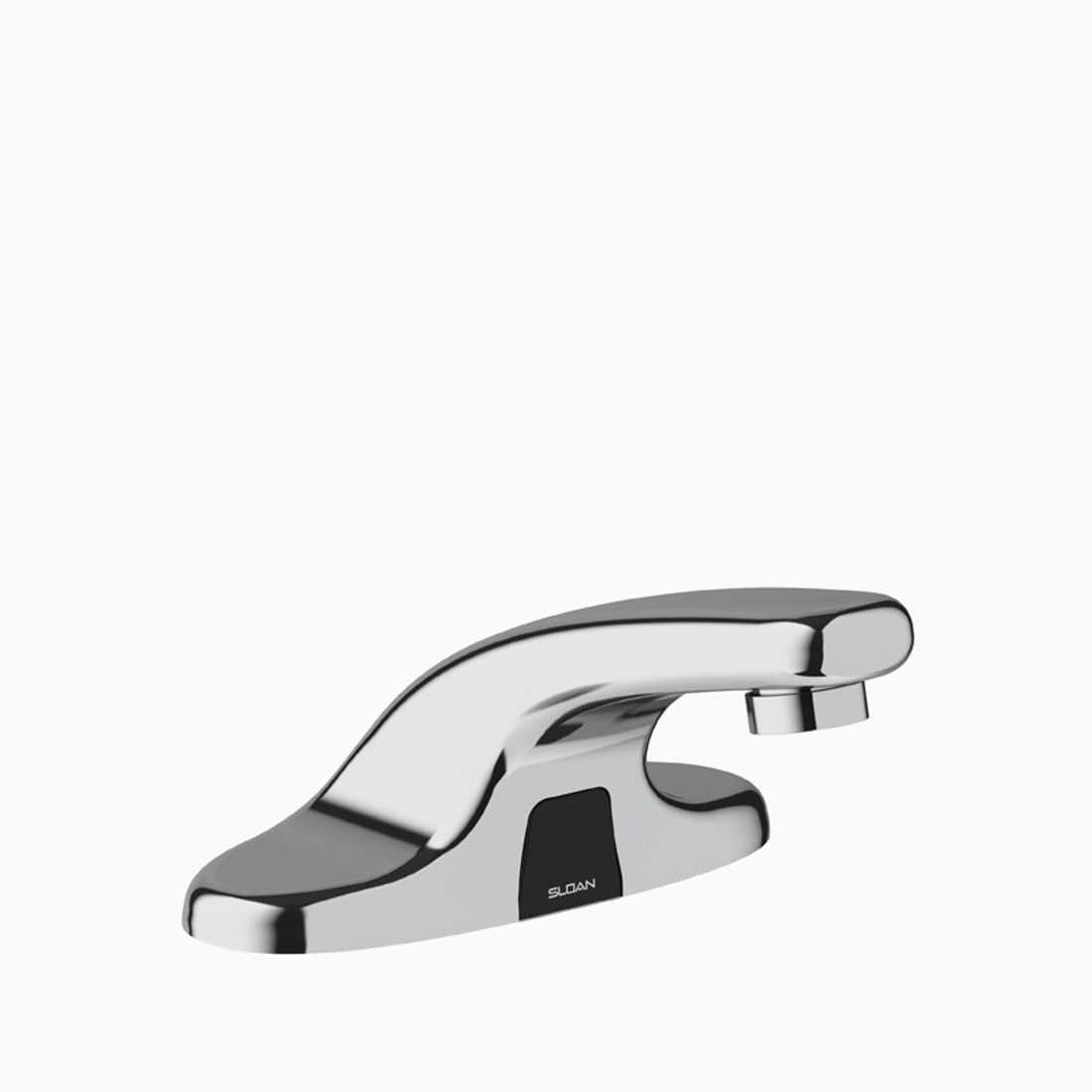

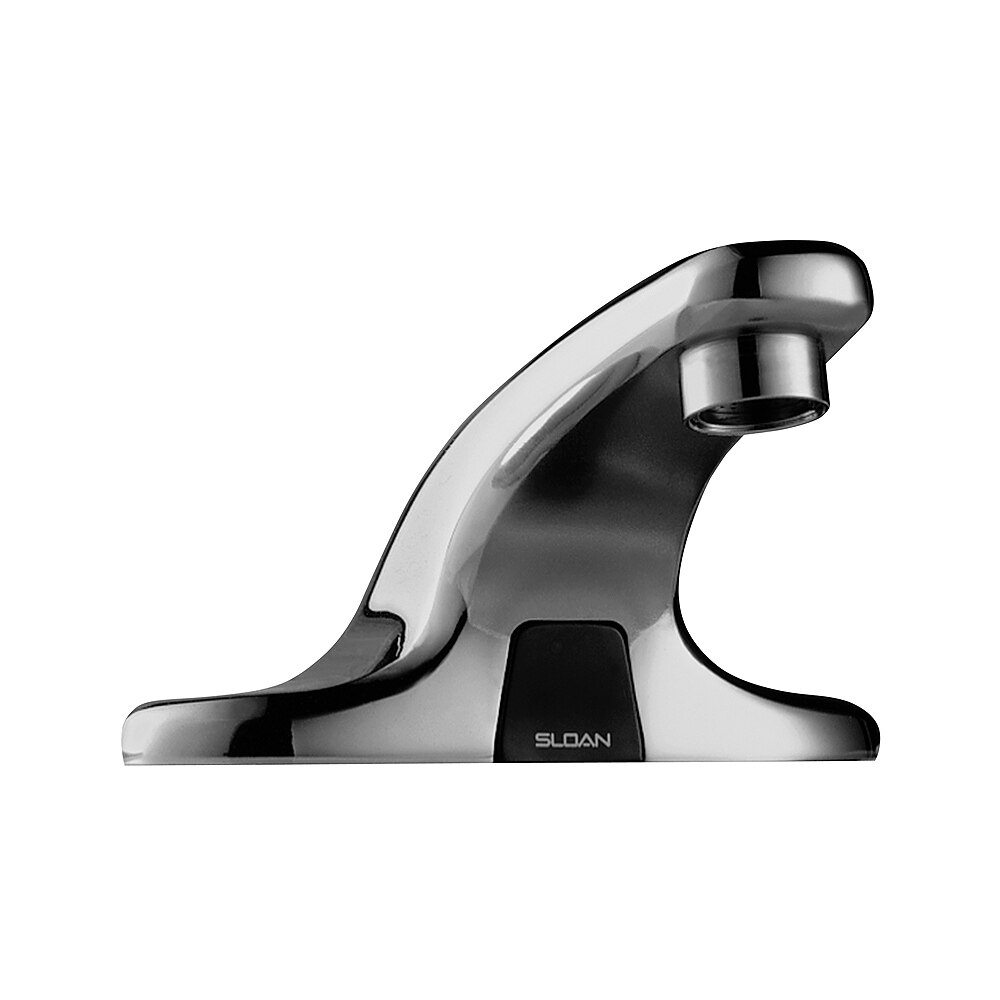

  • Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 GPM, Multi-Laminar Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Low Integrated Base Body Faucet Bluetooth Enabled

Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 GPM, Multi-Laminar Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Low Integrated Base Body Faucet Bluetooth Enabled

(0) No Reviews yet
SKU: 40105025
Mfr Part No: 3315025BT
$665.77
Log in for preferred pricing

In Stock

Available: 2

DETAILS
Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)

Spray Type: Multi-Laminar (MLM)

Sensor Type: Infrared (IR)

Mounting Type: 4" Centerset ()

Power Supply: Battery (BAT)

Temperature Mixer: Back-Check Tee (TEE)

Finish: Polished Chrome (CP)

Factory Default Timeout: 30s

Factory Default GPC: 0.25

FEATURES

Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass 4 Centerset Hand Washing Faucet with the following features:

Splash-proof Circuit Control Module

Sensor Range Adjustment Screw

Low Battery LED Indicator Light

User friendly Variable Time Out Settings

Serviceable Filtered Solenoid Valve

Vandal Resistant Spray Head with Pressure Compensating Flow Control

Metal Jacketed Wire Protection for Sensor lead
Includes four (4) AA-size Alkaline Batteries

Appropriate Mounting Hardware included

ELECTRICAL SPECIFICATIONS

Battery Life: 3 years 8,000 cycles/month

Optional power harvesting significantly extends service life

Sensor Range: 4" – 5" (102 – 127mm)

Timeout Adjustment Settings: 30s

POWER SUPPLY OPTIONS

6VDC Plug Adapter (sold separately)*

6VDC Ganged Adapter Kit (up to 6 units)(sold separately)*

24VAC Box Transformer (up to 3 units)(sold separately)*

Optional Turbine Energy Harvesting
* when converting units to hardwired with battery back-up
3315025BT
EBF-650-BAT-TEE-CP-0.5GPM-MLM-IR-FCT
Sloan
