T&S Brass
EasyInstall Wall Mount Pre‑Rinse Faucet, 1.15 GPM Spray Valve, 8 Inch Centers
Detailed Description

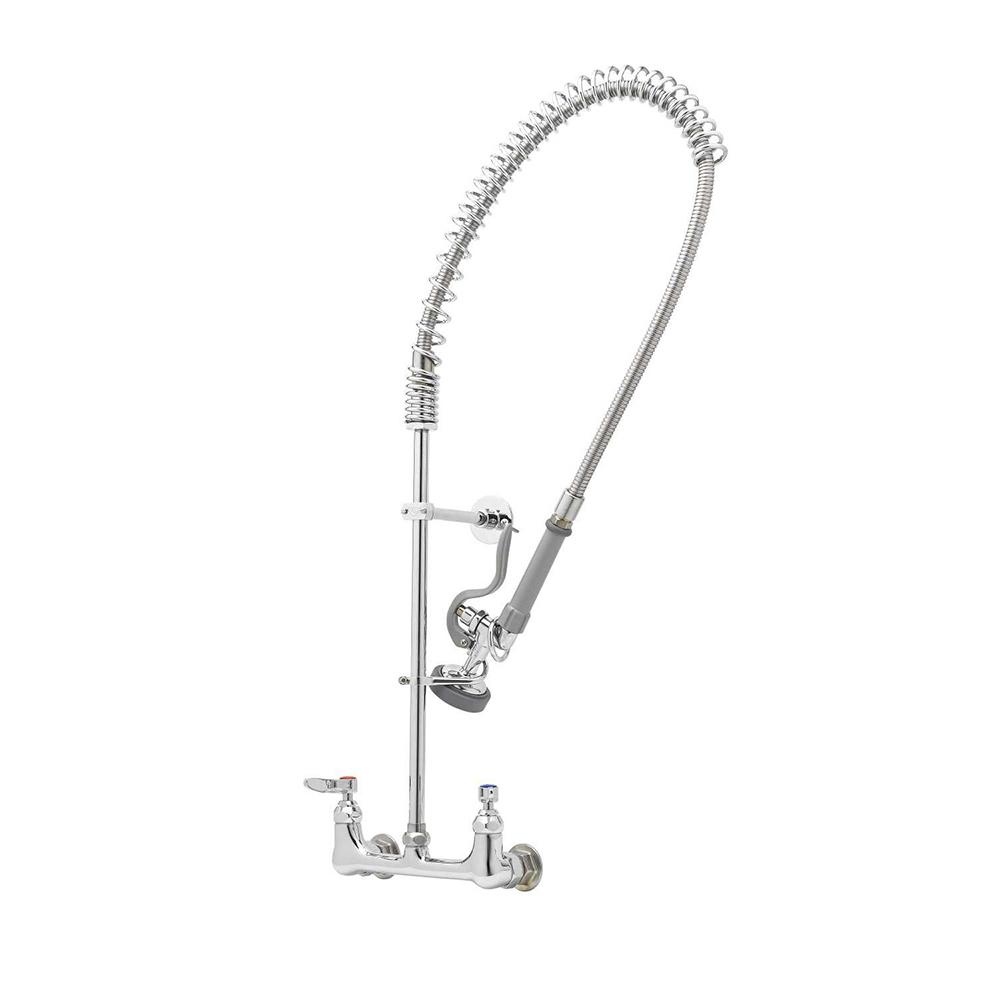

A commercial-grade pre‑rinse faucet system designed for heavy-duty foodservice and industrial kitchen applications. Engineered as part of the EasyInstall series, this wall‑mounted mixing faucet features an 8 inch center configuration with adjustable spacing, making installation faster and more flexible in both retrofit and new construction setups.
The unit includes an 18 inch riser, an overhead spring assembly, and a 44 inch flexible stainless steel hose with a heat‑resistant gray handle for extended reach and control during dishwashing and prep operations. Equipped with a spray valve delivering 1.15 GPM, the system provides efficient rinsing while meeting water conservation requirements. The self‑closing spray valve ensures automatic shutoff when released, helping reduce water waste during high‑volume use.
Built with a polished chrome‑plated brass body and stainless steel components, this is is designed for durability and long service life in demanding environments. Compression cartridges with spring check valves help prevent cross‑flow, while lever handles with color‑coded indexes provide intuitive operation. With standard 1/2 inch NPT female inlets and compliance with multiple plumbing and safety standards, this pre‑rinse unit is a dependable solution for restaurants, institutional kitchens, and facility maintenance teams
Features & Benefits
- Includes 6 inch wall bracket
- Pressure Range: 20-125 PSI
- Spray Valve Flow: 1.15 GPM
- 18 Inch riser for quick installation
- Polished chrome-plated brass body
- Temperature Range: 40-140 Degrees F
- Adjustable centers from 7-3/4 inch to 8-1/4 inch
- 1/2 Inch NPT female eccentric inlets with 2 inch flanges
- Chrome plated metal lever handles with color-coded indexes
- 44 Inch flexible stainless steel hose with heat resistant gray handle and hold-down ring
- Quarter-turn Eterna compression cartridges with spring checks to prevent water cross-flow
- Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372. 2019 DOE PRSV - Class II compliant
- Includes: pre-rinse body, riser and spray valve body, spray valve holder, overhead spring, stainless steel hose, wall bracket, and handles
Specifications
| Manufacturer (Brand) | T&S Brass |
|---|---|
| Manufacturer Item Number | B-0133-BM |
| UPC | 671262113168 |
| Weight (lb) | 11.55 |
| Package Quantity | Each |
| Flow Rate | 1.15 GPM |
| Material | Chrome Plated |
| Connection | 8" Centers |
| Facility Type | Commercial |
| Finish | Polished Chrome |
| Mounting Style | Wall Mount |
| Fixture Type | Pre-Rinse |
| Valve Mechanism | Compression |
| Feature | Genuine OEM |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govBAA Compliant Low Lead Compliant (USA) |
