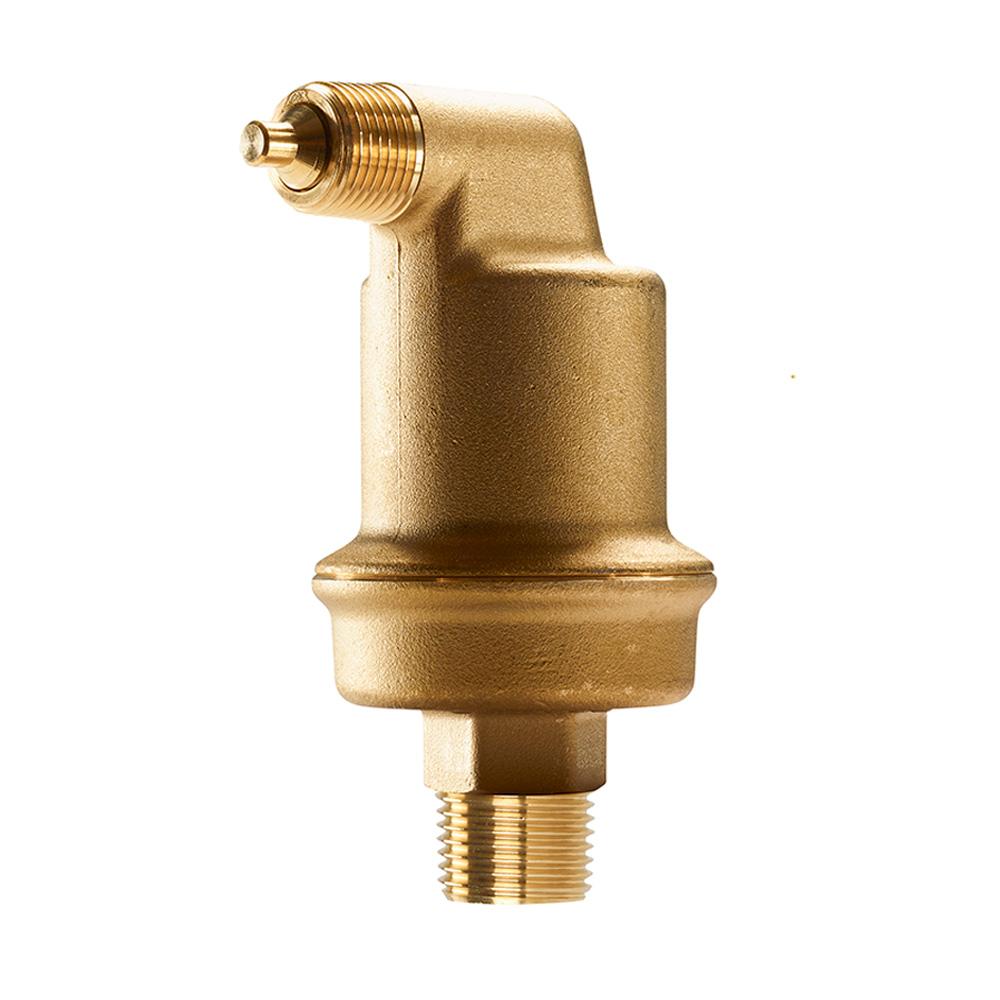

SpiroTop Automatic Air Vent 1/2 In Female NPT, 3/4 In Male NPT, Brass Body
Detailed Description
The ultimate solution for reliable air venting in your system. Our innovative "dry" vent design ensures that system fluid never comes into contact with the spring-actuated Viton® seat and seal assembly, effectively preventing the common failures seen in conventional air vents. The SpiroTop is not only highly durable but also cost-effective, often priced lower than vents of lesser quality and standard ratings. It's the top choice for facilities departments, especially those managing multi-building campuses.
Features & Benefits
- Seal Viton
- O-Ring Viton
- Brass Vent Head
- Non-Ferrous Float
- Maintenance Free
- Continuous Air Venting
- Dirt and Leak Resistant
- Sized to Fit Almost Anywhere
- Max Working Pressure 150 PSI
- Quick Removal of Large Air Bubbles
- Max Operating Temperature 270 Degrees F
- Reliable Vacuum Breaker for System Draining
- Dimension 2-5/8 Inch Length X 4-3/8 Inch Height
- 3/4 In Male NPT x 1/2 In Female NPT in the inlet, and 1/2 In Male NPT on the outlet
- Replaces the ITT Hoffman 79, Bell & Gosset 79, and the Honeywell Braukman EA79A1004
Specifications
| Manufacturer (Brand) | The Part Works |
|---|---|
| Manufacturer Item Number | VTP050FT |
| UPC | 638559001010 |
| Weight | 1.5 |
| UOM | Eaches |
| Material | Brass |
| Connection | FIP |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov |
