Sloan

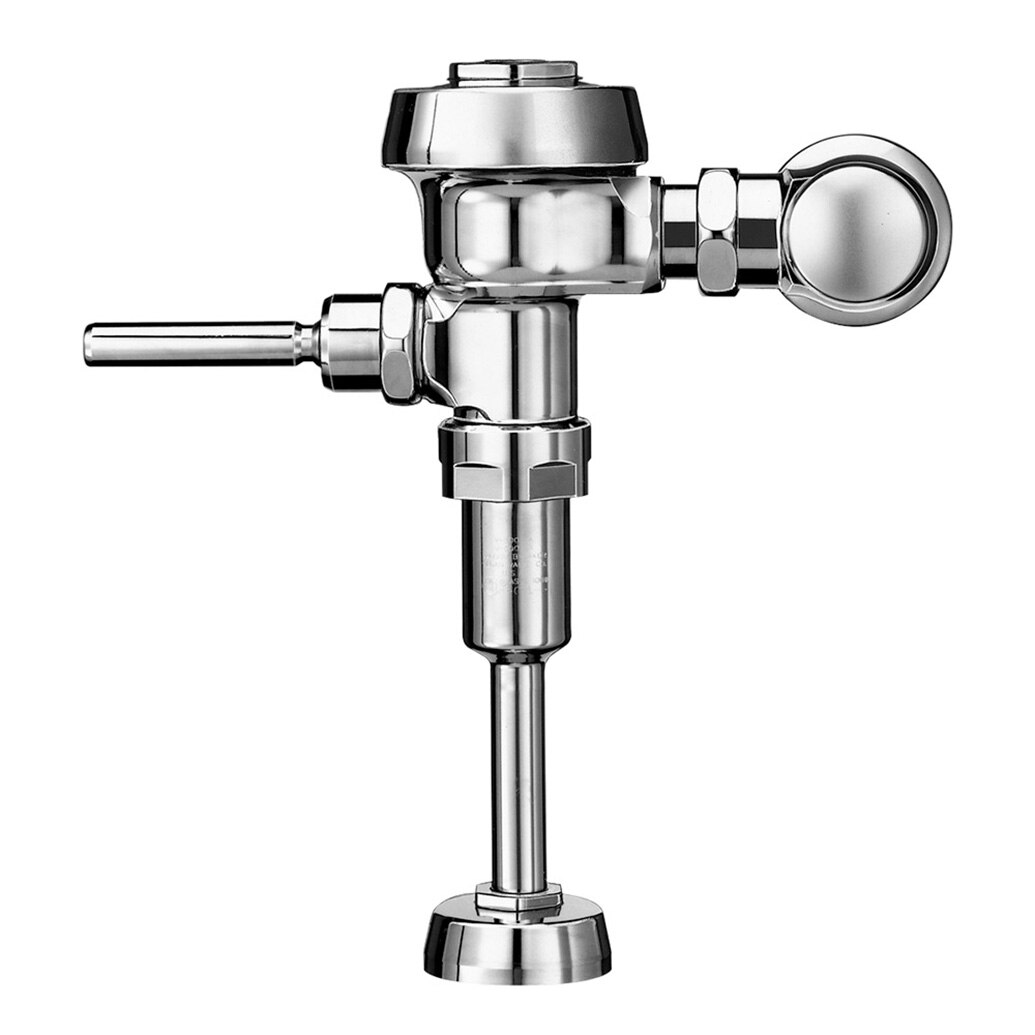

Royal 186, Exposed Flushometer, Top Spud for Urinal, Manual Single Flush 0.5 GPF/1.9 LPF
Detailed Description
Royal 186 exposed manual 0.5 GPF urinal flushometer with polished chrome finish.
Features & Benefits
- Adjustable Tailpiece
- Valve: Diaphragm
- Fixture Type: Urinal
- Fixture Connection: Top Spud
- Spud Coupling: ¾ inch (19mm)
- Supply Pipe: ¾ inch (19mm)
- Finish: Polished Chrome (CP)
- Flush Volume: 0.5 gpf (1.9 Lpf)
- Rough-In Dimension: 11 ½ inch (292mm)
- Valve Body Material: Semi-red Brass
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- 3⁄4 Inch I.P.S. Screwdriver Bak-Chek® Angle Stop w/ Free Spinning Vandal Resistant Stop Cap
- High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed bypass
- Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Diaphragm, Handle Packing, and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3912697 |
| UPC | 671254130579 |
| Weight | 6.56 |
| UOM | Eaches |
| Flow Rate | 0.5 GPF |
| Feature | Genuine OEM |
| Model Name | Royal |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant BAA Compliant cUPC Green Certified Satisfies LEED Credits |
