Sloan

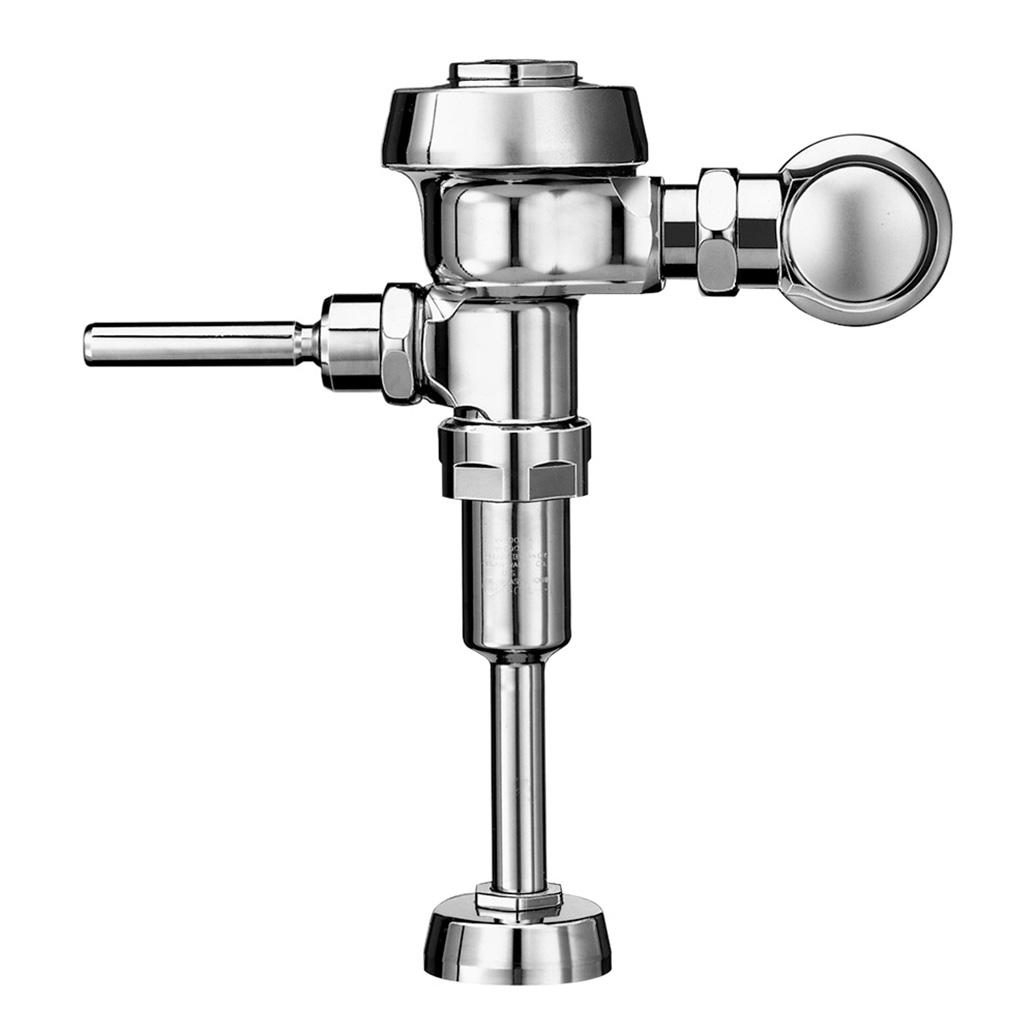

Royal 186 0.125 GPF Exposed Manual Urinal Flushometer
Detailed Description
Royal manual urinal flush valve with 0.125 GPF, dual filter bypass, top spud, and single flush, featuring a polished chrome finish.
Features & Benefits
- Valve: Diaphragm
- Resistant Stop Cap
- Fixture Type: Urinal
- Fixture Connection: Top Spud
- Finish: Polished Chrome (CP)
- Bypass: Dual-Filtered Bypass
- Spud Coupling: ¾ inch (19mm)
- Flush Volume: 0.125 GPF(0.5 Lpf)
- Valve Body Material: Semi-red Brass
- Rough-In Dimension: 11 ½ inch (292mm)
- Volume Adjustment to Ensure Water Conservation
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- Non-Hold-Open Handle, Fixed Metering Bypass, and No External
- 3⁄4 Inch I.P.S. Screwdriver Bak-Chek® Angle Stop w/ Free Spinning Vandal
- PERMEX® Synthetic Rubber Diaphragm with Dual-Filtered Fixed Bypass
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- Diaphragm, Handle Packing, and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3912633 |
| UPC | 671254345744 |
| Weight | 6.51 |
| UOM | Eaches |
| Flow Rate | 0.125 GPF |
| Connection | Top Spud |
| Finish | Polished Chrome |
| Fixture Type | Urinal |
| Feature | Genuine OEM |
| Model Number | 186-0.125 |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant cUPC Certified BAA Compliant cUPC Green Certified Satisfies LEED Credits WaterSense Certified |
