Sloan

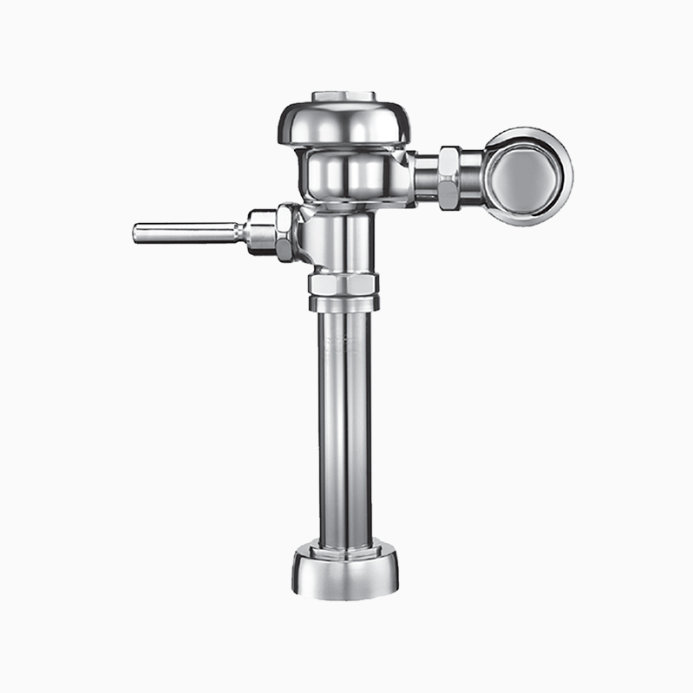

Sloan 1.28 GPF, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Sloan Exposed Manual Water Closet Flushometer
Detailed Description
DETAILS
Flush Volume: 1.28 GPF(4.8 LPF)
Finish: Polished Chrome
Valve: Diaphragm
Bypass: Dual-Filtered Fixed Bypass Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
FEATURES
High Chloramine Resistant PERMEX Synthetic Rubber Diaphragm
with Linear Filtered Bypass and Vortex Cleansing ActionTM
1� I.P.S. Screwdriver Bak-Chek Angle Stop with Vandal Resistant Stop Cap
Vacuum Breaker with Flush Connection
Spud Coupling and Spud Flange for 11�2� Top Spud
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
Diaphragm, Handle Packing and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
ADA Compliant Metal Oscillating Non-Hold-Open Handle
Flush Volume: 1.28 GPF(4.8 LPF)
Finish: Polished Chrome
Valve: Diaphragm
Bypass: Dual-Filtered Fixed Bypass Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
FEATURES
High Chloramine Resistant PERMEX Synthetic Rubber Diaphragm
with Linear Filtered Bypass and Vortex Cleansing ActionTM
1� I.P.S. Screwdriver Bak-Chek Angle Stop with Vandal Resistant Stop Cap
Vacuum Breaker with Flush Connection
Spud Coupling and Spud Flange for 11�2� Top Spud
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
Diaphragm, Handle Packing and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
ADA Compliant Metal Oscillating Non-Hold-Open Handle
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3780018 |
| UPC | 671254356580 |
| Weight | 6.88 |
| UOM | Eaches |
| Flow Rate | 1.28 GPF |
| Flush Mechanism | Manual Flush |
| Feature | Genuine OEM |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov |
