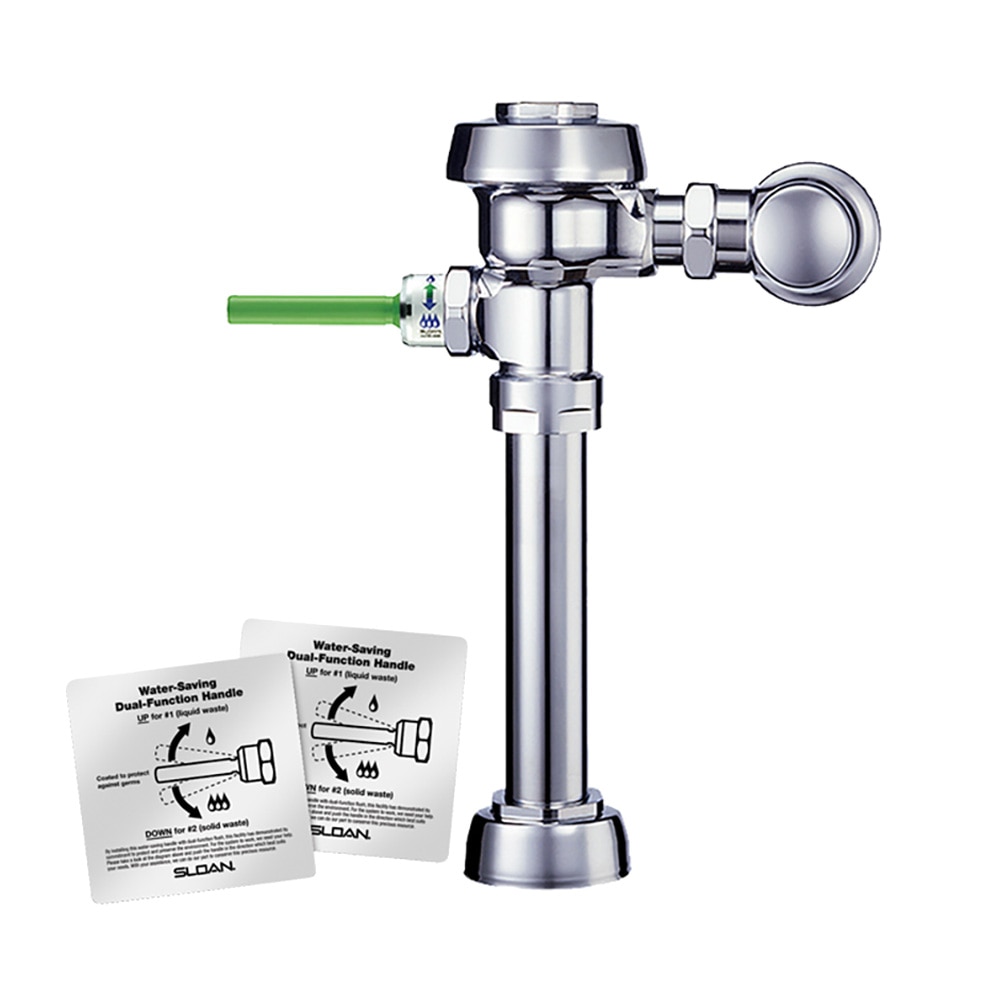

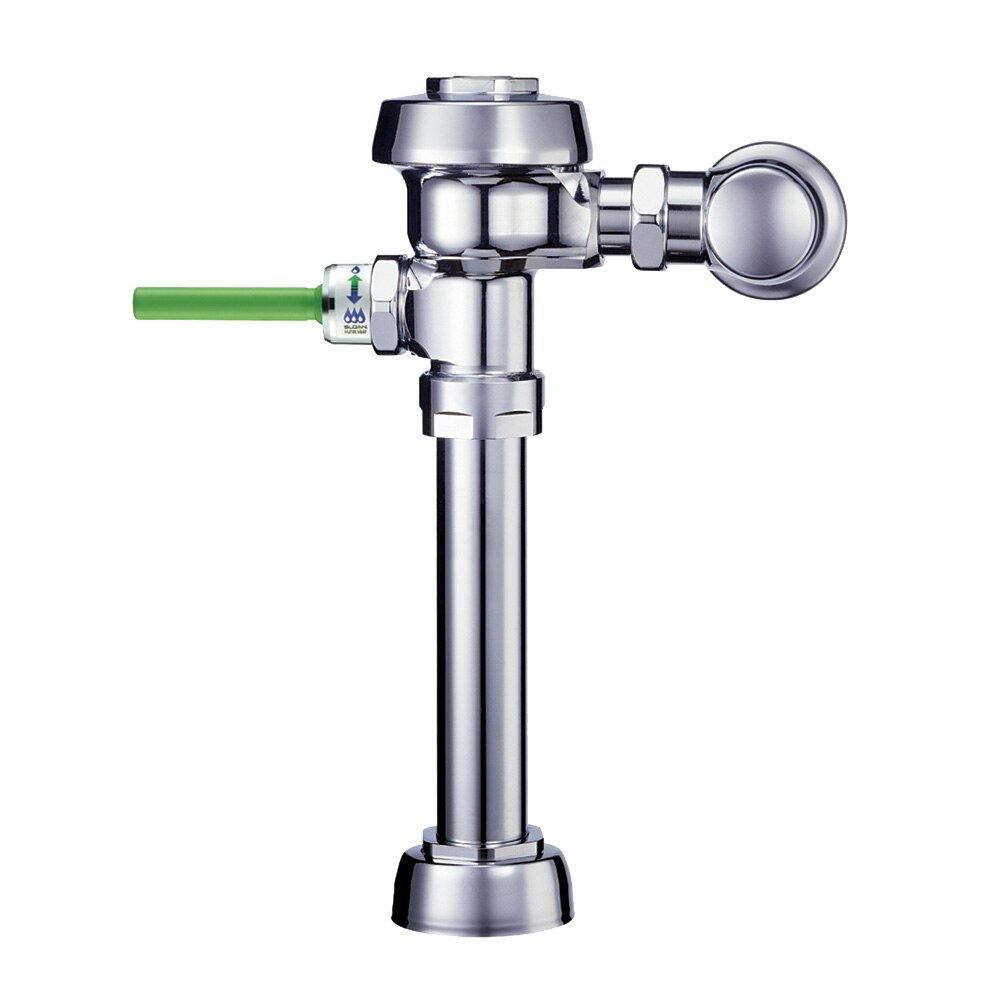

Royal WES 111 1.6 GPF Dual Flush, UPPERCUT® Exposed Manual Water Closet Flushometer

WES 111-1.6/1.1 GPF polished chrome finish, fixture connection top spud, dual flush, UPPERCUT® exposed manual water closet flushometer.

• Supply pipe: 1 inch (25mm)
• Fixture type: water closet
• Fixture connection: top spud
• Spud coupling: 1-1/2 inch (38mm)
• Finish: polished chrome (cp)
• Valve body material: semi-red brass
• Flush volume: 1.6/1.1 gpf (6.0/4.2 lpf)
• Rough-in dimension: 11-1/2 inch (292mm)
• Volume adjustment to ensure water conservation
• Lifting the handle up initiates reduced flush (1.1 gpf,4.2 lpf)
• Eliminating liquid and paper waste, saving a 1⁄2-gallon of water
• Reduces water volume by up to 30% when activated upwards
• Ada metal non-hold-open handle with triple seal handle packing
• Non-hold-open handle, fixed metering bypass, and no external
• Antimicrobial coating on handle protects handle against germs
• Includes all the reliable, long-lasting features of the Royal® flushometer
• Permex® synthetic rubber diaphragm with dual-filtered fixed bypass
• Sweat solder adapter with cover tube & cast wall flange with set screw
• Pushing the handle down initiates full flush (1.6 gpf,6.0 lpf), eliminating all waste
• Includes two (2) adhesive-backed metal wall plates etched with instructions
• Diaphragm, handle packing, and vacuum breaker to be molded from Permex® rubber compound for chloramine resistance
