Sloan

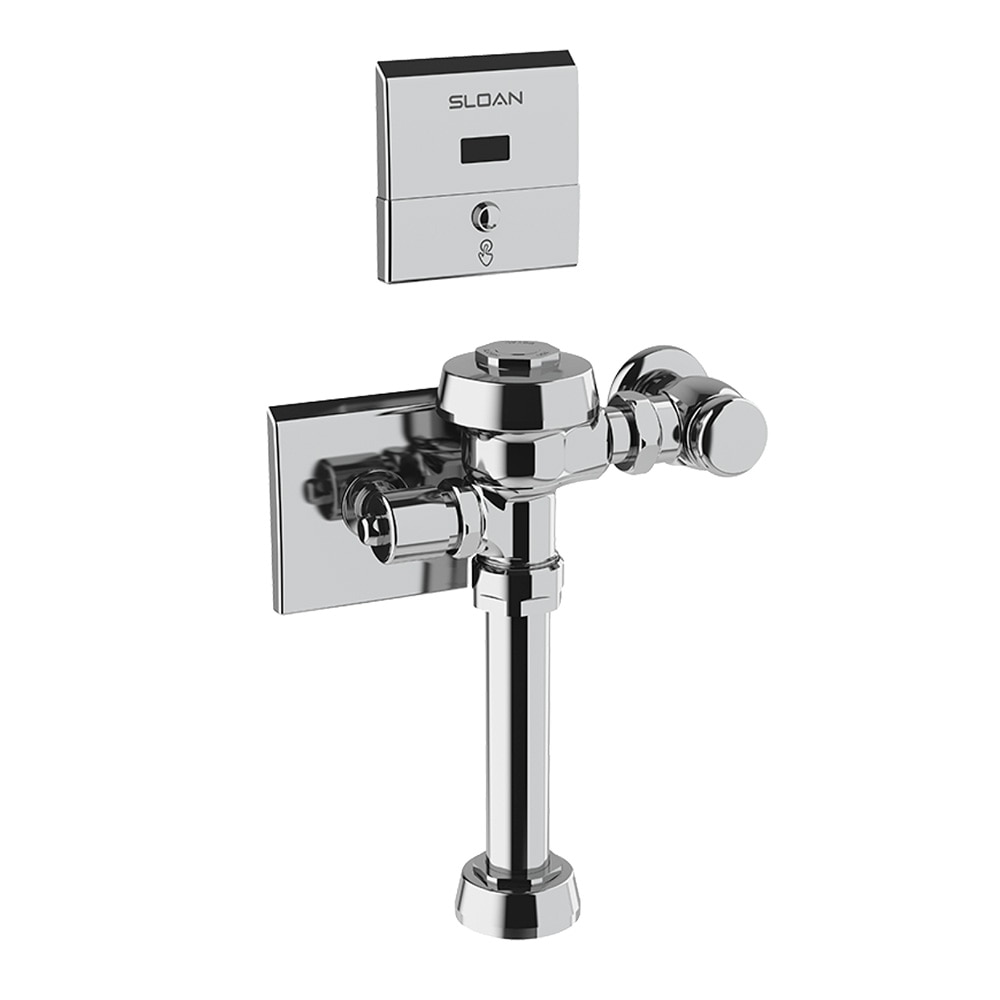

Royal 111 ESS 1.6 GPF Single Flush Exposed Sensor Hardwired Water Closet Flushometer
Detailed Description
Royal 1.6 GPF single flush exposed sensor activated toilet flushometer with a top spud connection and polished chrome finish.
Features & Benefits
- Valve: Diaphragm
- Voltage: 24V (24V)
- Override: Electrical (OR)
- Supply Pipe: 1 in (25mm)
- Fixture Type: Water Closet
- Power Type: Hardwired (HW)
- Finish: Polished Chrome (CP)
- Spud Coupling: 1 ½ in (38mm)
- Control Stop: 1 in (1-IN-STOP)
- Flush Volume: 1.6 GPF (6.0 LPF)
- Courtesy Flush® Override Button
- Valve Body Material: Semi-red Brass
- User friendly three (3) second Flush Delay
- OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
- Fixture Connection: Top Spud Rough-In Dimension: 11 ½ in (292mm)
- Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Die Cast Sensor Plate with no visible Fasteners (for 2-gang Electrical Box)
- 1In I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
- Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
- Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- High Back Pressure Vacuum Breaker Flush Connection with OnePiece Bottom Hex Coupling Nut, Spud Coupling and Flange for 11⁄2 in Top Spud
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3450047 |
| UPC | 671254138193 |
| Weight | 9.63 |
| UOM | Eaches |
| Flow Rate | 1.6 GPF |
| Material | Semi Red Brass |
| Connection | Top Spud |
| Facility Type | Commercial |
| Water Efficiency | Low Consumption |
| Specialty Features | Electrical Override |
| Finish | Polished Chrome |
| Mounting Style | Floor Mount |
| Fixture Type | Toilet |
| Flush Mechanism | Sensor Activated |
| Power | Hardwired |
| Sensor Position | Wall |
| Valve Mechanism | Diaphragm |
| Feature | Genuine OEM |
| Model Name | Royal |
| Model Number | ROYAL 111 ESS-1.6-1-IN-STOP-OR-HW-24V |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant cUPC Certified BAA Compliant UL Certified |
