Sloan

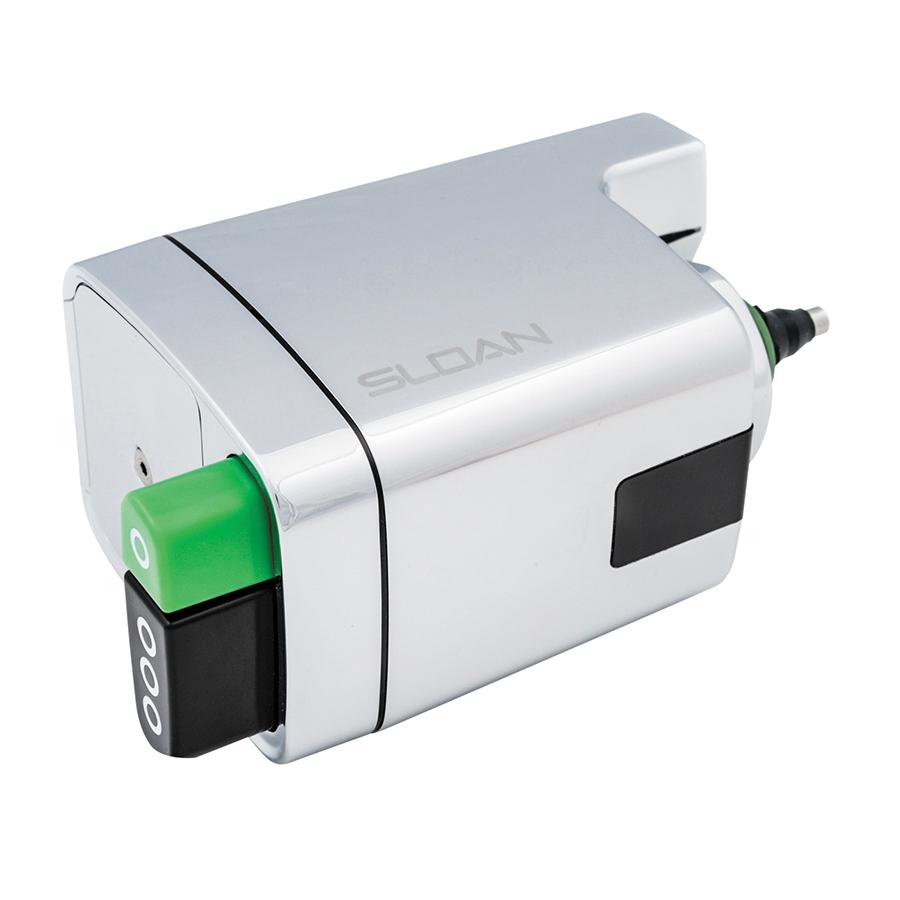

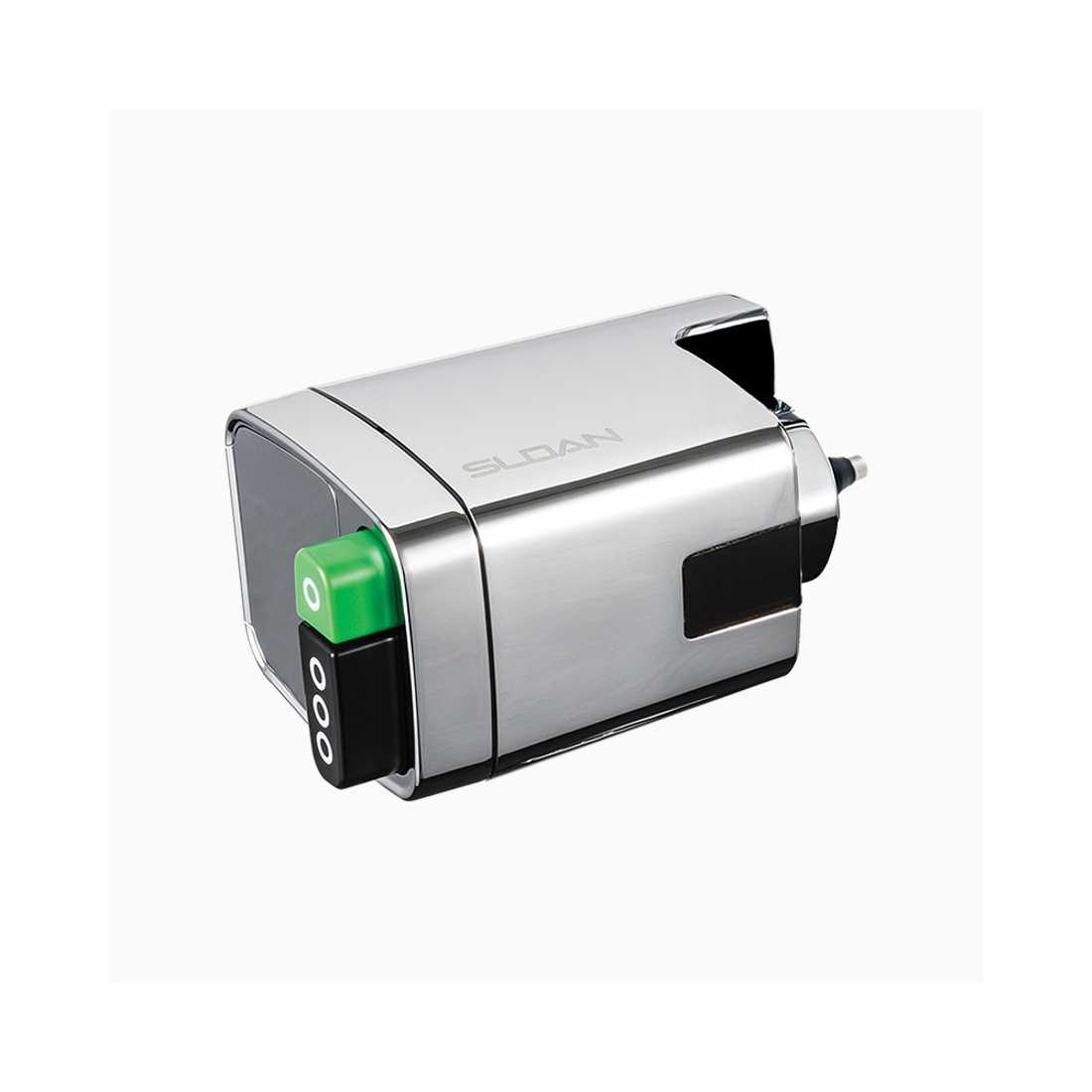

Exposed 1.6/1.1 GPF Sensor Activated Retrofit Flushometer For Water Closet
Detailed Description
EBV550A Dual flush, battery operated exposed sensor operated retrofit flushometer for toilet.
Features & Benefits
- Power Type: Battery
- Battery Life: 3 years
- 72-Hour Sentinel Flush
- Valve: Diaphragm/Piston
- Fixture Type: Water Closet
- “Low Battery” Flashing LED
- “User in View” Flashing LED
- Finish: Polished Chrome (CP)
- Fixture Connection: Top Spud
- Override: True Mechanical (TMO)
- Four (4) size C batteries included
- Flush Volume: 1.6/1.1 GPF (6.0/4.2 LPF)
- User friendly three (3) second Flush Delay
- Non-Hold-Open True Mechanical Override Full Flush Button
- No External Volume Adjustment to Ensure Water Conservation
- The Side Mount units can be used on standard rough-in Sloan, Royal and Regal flushometers
- ADA Compliant Optima Plus® Battery Powered Infrared Side Mount Sensfautomatic “No Hands” operation
- If the user is present for greater than one minute and leaves the zone and chooses the large BLACK override button, the full flush initiates (1.6 GPF/6.0 LPF), eliminating solid waste and paper
- If the user is present for less than one minute and leaves the sensing zone chooses the small GREEN override button, a reduced flush initiates (1.1 GPF/4.2 LPF), eliminating liquid and paper waste, saving 1/2 gallon of water
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3325501 |
| UPC | 671254400122 |
| Weight | 2.76 |
| UOM | Eaches |
| Flow Rate | 1.6/1.1 GPF |
| Specialty Features | Retrofit |
| Finish | Chrome Plated |
| Fixture Type | Toilet |
| Power | Battery |
| Feature | Genuine OEM |
| Model Number | EBV550A-IR-1.6/1.1-TMO |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant cUPC Certified |
