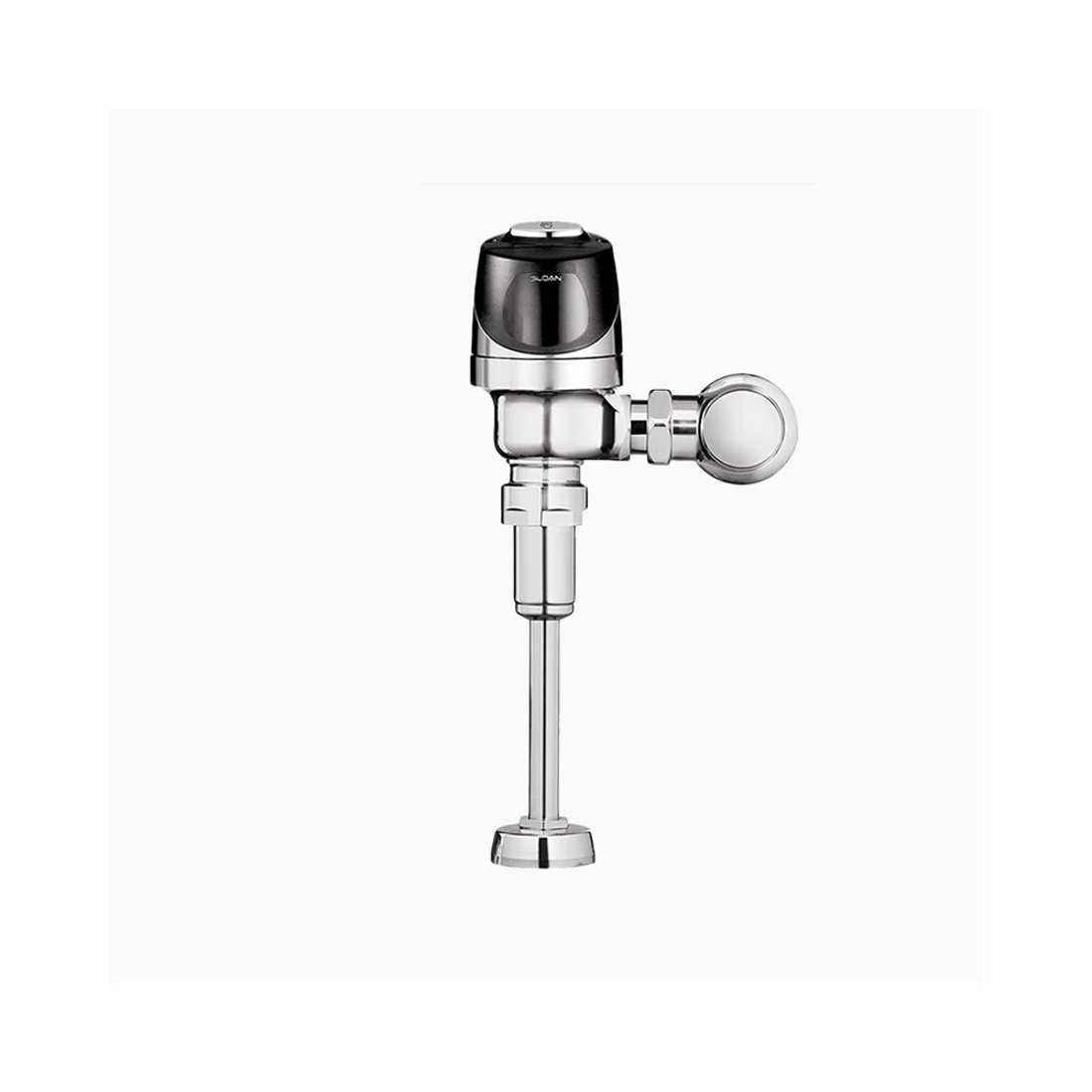

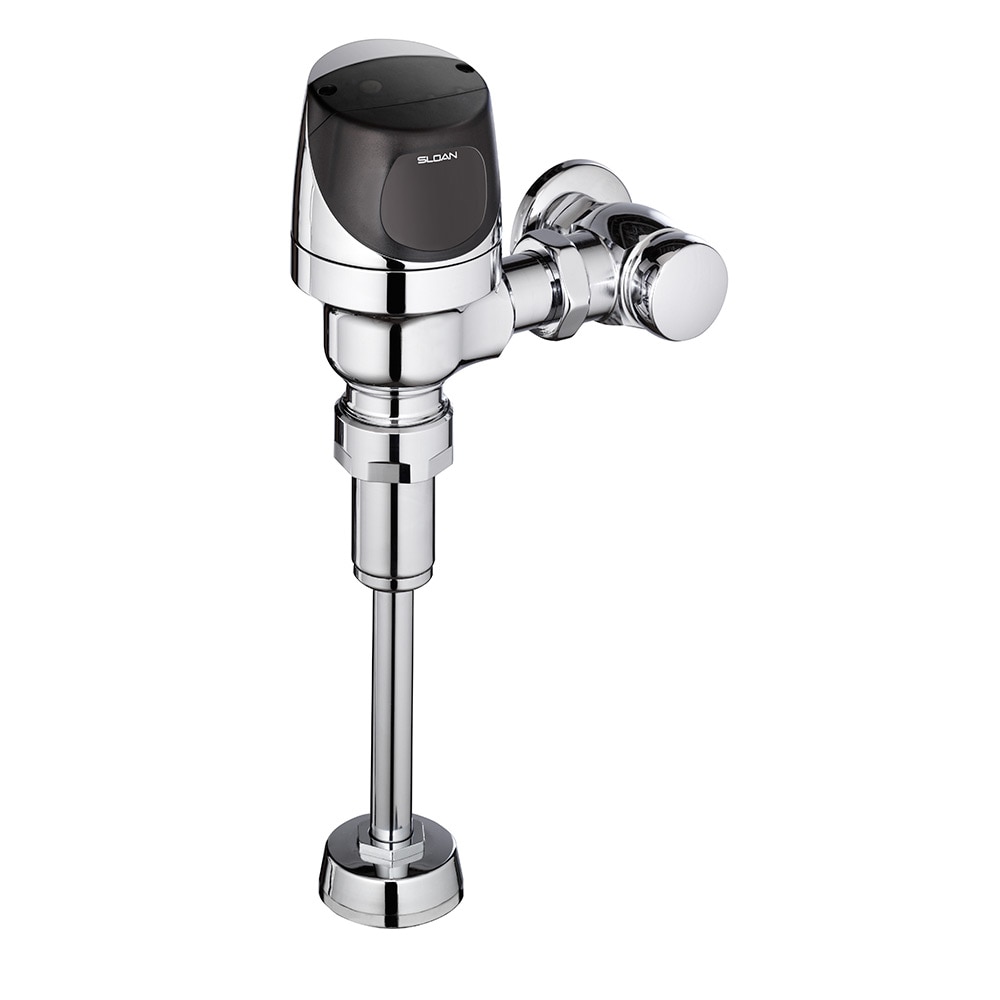

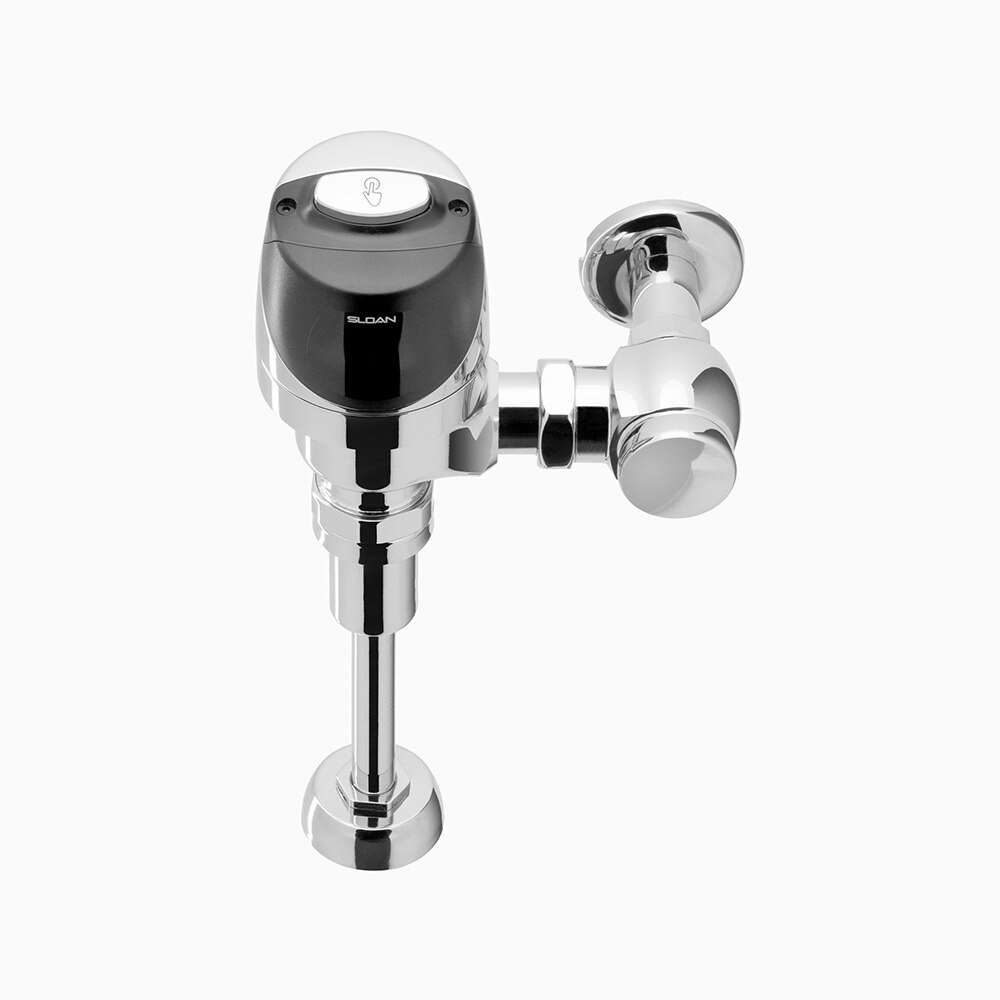

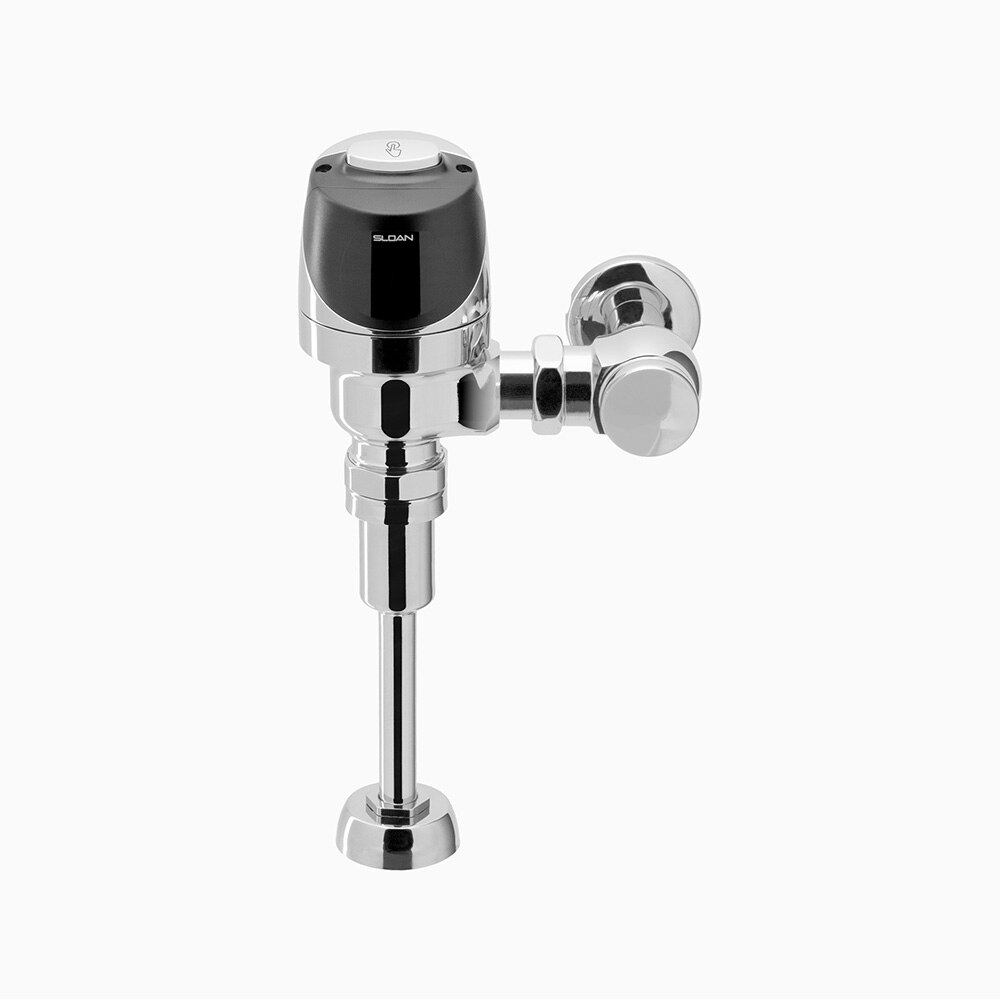

G2 8186 Series Exposed Sensor Urinal Flushometer, 0.5 GPF, Low Consumption High Efficiency, Less Handle, Less Control Stop, Less Vacuum Breaker, Polished Chrome

The G2 8186 Exposed Sensor Urinal Flushometer is a cutting-edge fixture designed to improve both efficiency and hygiene in urinal systems. Featuring a 1.0 gallon per flush (GPF) rate, it ensures optimal water usage while supporting conservation efforts, making it an environmentally responsible choice. Its low consumption technology minimizes water waste without compromising flushing performance. The exposed sensor enables a touch-free flush, promoting a hygienic experience and reducing the risk of cross-contamination. With a polished chrome finish, the flushometer offers a sleek, modern appearance along with durability and ease of maintenance. Although it does not come with a vacuum breaker, handle, or control stop, it is compatible with a range of options, allowing for flexible customization and adherence to local plumbing codes.

• Top Spud
• Semi-Red Brass
• 1 Inch Supply Pipe
• 11-1/2 Inch Rough In
• 1-1/2 Inch Spud Coupling
• “Low Battery” Flashing LED
• Four Size AA Batteries Included
• Courtesy Flush Override Button
• User Friendly Three Second Flush Delay
• Engineered Metal Cover with replaceable Lens Window
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• 1 Inch I.P.S. Screwdriver Bak-Chek Angle Stop with Vandal Resistant Stop Cap
• Flex Tube Diaphragm designed for Improved Life and Reduced Maintenance
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Infrared Sensor with Multiple Focused, Lobular Sensing Fields for High and Low Target Detection
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
