Sloan
Royal 952 Concealed Manual Specialty 3.5 GPF Water Closet Hydraulic Flushometer, 2 To 10-3/4 L Dim
Detailed Description

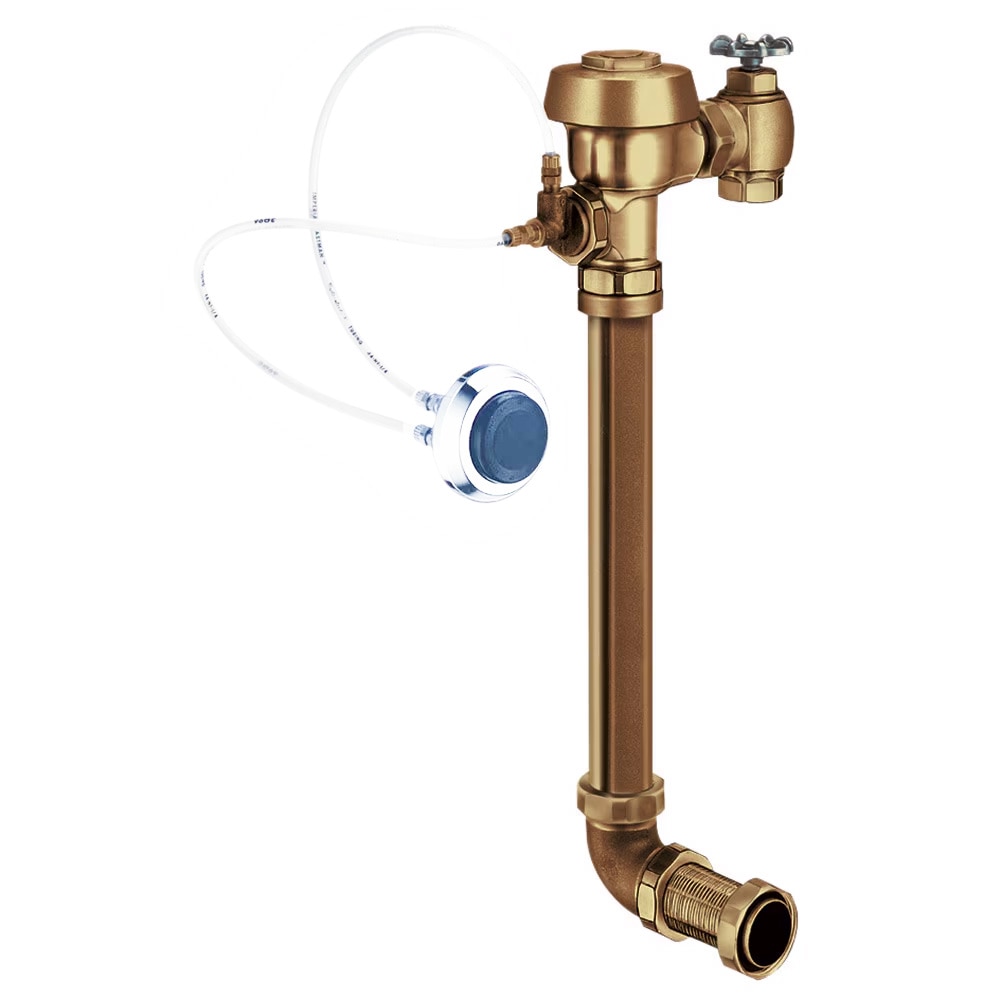

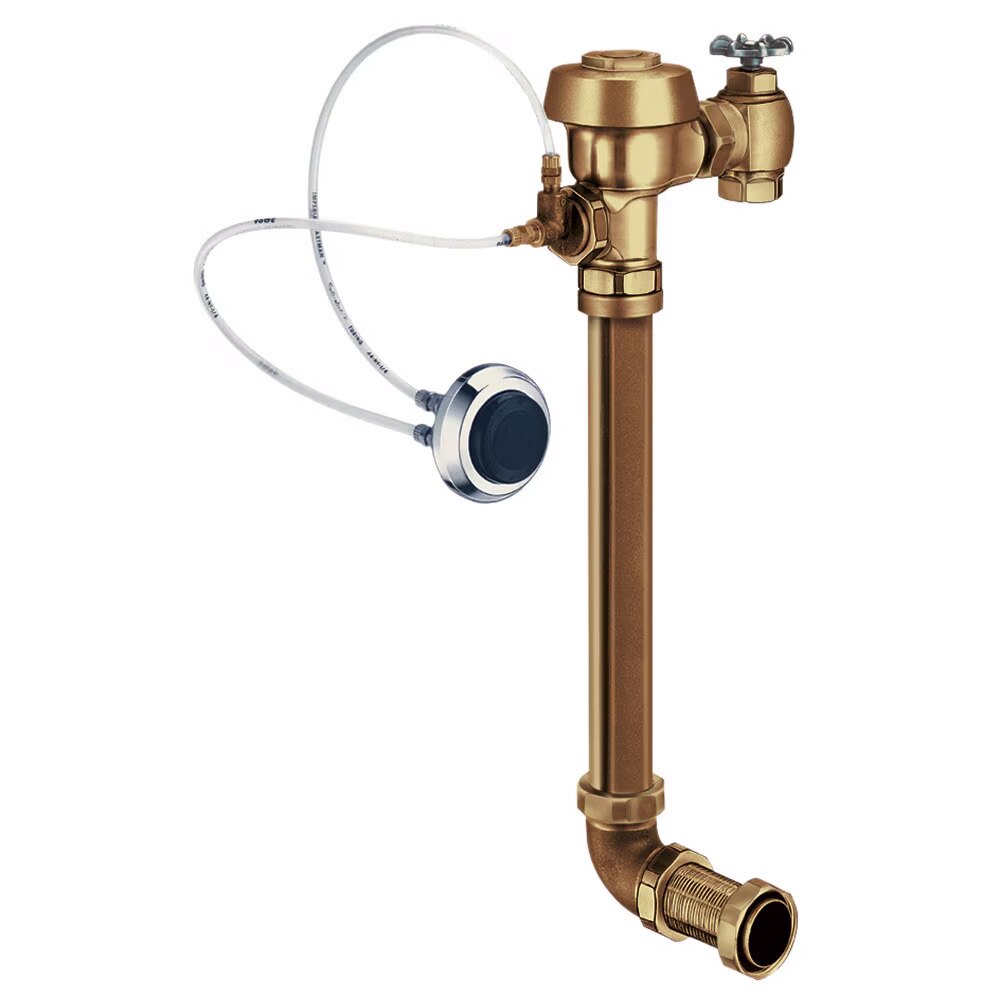

Royal 952 concealed manual specialty water closet hydraulic flushometer. Non-hold-open handle, fixed metering bypass, and no external volume adjustment to ensure water conservation. Button sold separately.
Features & Benefits
- Valve: Diaphragm
- Sweat Solder Adapter
- Button sold separately
- Supply Pipe: 1in (25mm)
- Finish: Rough Brass (RB)
- Fixture Type: Water Closet
- Spud Coupling: 1½ in (38mm)
- Fixture Connection: Rear Spud
- Flush Volume: 3.5 GPF (13.2 LPF)
- Valve Body Material: Semi-red Brass
- Rough-In Dimension: 14 ½ in (368mm)
- Dual Filtered Fixed Bypass Diaphragm
- 1 In I.P.S. wheel handle Bak-Chek® angle stop
- L Dimension: 2 in – 10 ¾ in (51 – 273mm) (2-10-3/4-LDIM)
- ADA-compliant non-hold-open feature type actuator (not included; order separately-specify actuator type listed below)
- Diaphragm, stop seat, and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
Specifications
| Manufacturer (Brand) | Sloan |
|---|---|
| Manufacturer Item Number | 3014801 |
| UPC | 671254029958 |
| Weight | 8.949 |
| UOM | Eaches |
| Flow Rate | 3.5 GPF |
| Finish | Rough Brass |
| Fixture Type | Toilet |
| Feature | Genuine OEM |
| Model Name | Royal |
| Model Number | ROYAL 952-3.5-2-10-3/4-LDIM |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov |
