Chicago Faucets

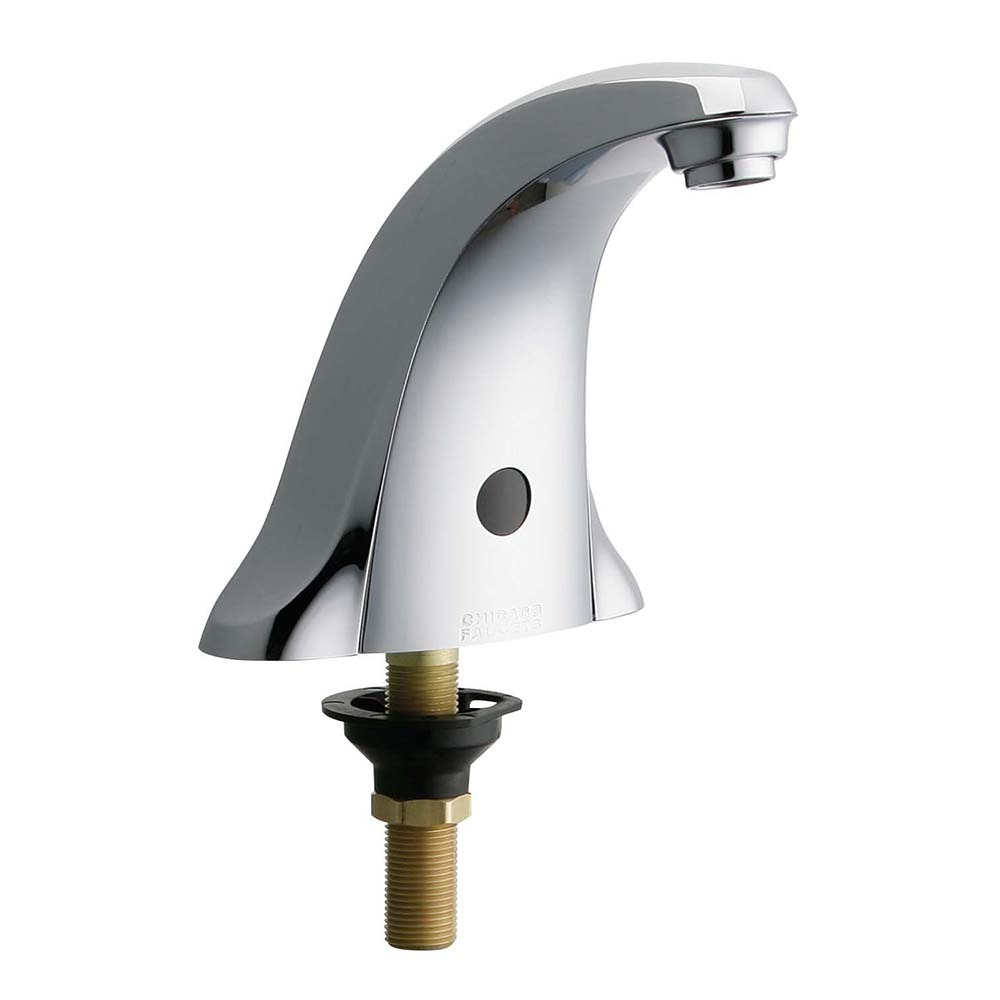

E-Tronic® 40 Series, Touch-Free, Programmable Lavatory Sink Faucet With Above-Deck Electronics
Detailed Description
The E-Tronic® 40 series is a sleek, touch-free electronic lavatory faucet designed for commercial and institutional settings where hygiene and water conservation are top priorities. Featuring a traditional-style spout and advanced dual-beam infrared sensor technology, this faucet delivers reliable hands-free operation with programmable settings for customized performance. Its durable ECAST® brass construction ensures long-term use while maintaining low lead content for safety and compliance.
Features & Benefits
- Single supply for tempered water
- Single-hole deck mount with chrome-plated finish
- Dual-beam infrared sensor for touchless activation
- Powered by a 6-volt lithium CRP2 battery (included)
- Operating pressure: 20–125 PSI; temperature range: 40–140°F
- ECAST® construction with ≤ 0.25% lead content by weighted average
- Above-deck electronics with multiple field-adjustable modes and ranges
- E-Tronic® 40 module kit with Bluetooth® communication (242.337.00.1T)
- ADA compliant and certified to NSF/ANSI 61, ASME A112.18.1/CSA B125.1
- Compatible with the Chicago Faucets Commander™ handheld programming unit
- Built-in Bluetooth for wireless configuration and monitoring via CF Connect App
- Complies with CALGreen standards: 0.2 gallons per cycle max with supplied E2805 outlet
- 0.5 GPM vandal-proof, pressure compensating Econo-Flo™ non-aerating laminar spray (E2805JKABCP)
- Internal Antenna Specifications: Peak Gain of the antenna: ─1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
- 10 Second run time with hand presence. The safety auto-timeout feature will shut the water off after 10 seconds. Reactivate the faucet by removing your hands from the sensor for at least 1 second.
Specifications
| Manufacturer (Brand) | Chicago Faucets |
|---|---|
| Manufacturer Item Number | 116.606.AB.1 |
| UPC | 611943161033. |
| Weight (lb) | 3.626 |
| UOM | Eaches |
| Flow Rate | 0.5 GPM |
| Finish | Polished Chrome |
| Mounting Style | Single Hole |
| Power | Battery |
| Feature | Genuine OEM |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.govADA Compliant CalGreen Compliant ASME Certified NSF/ANSI Certified |
