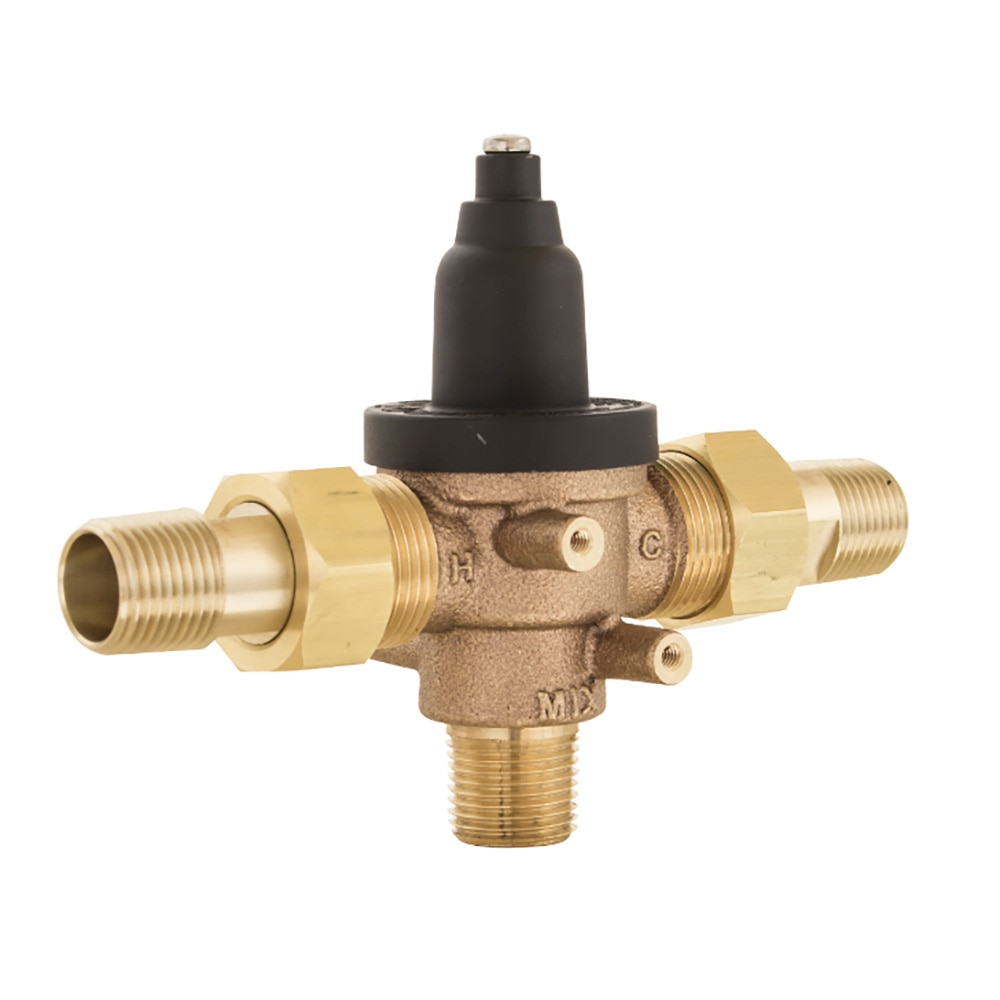

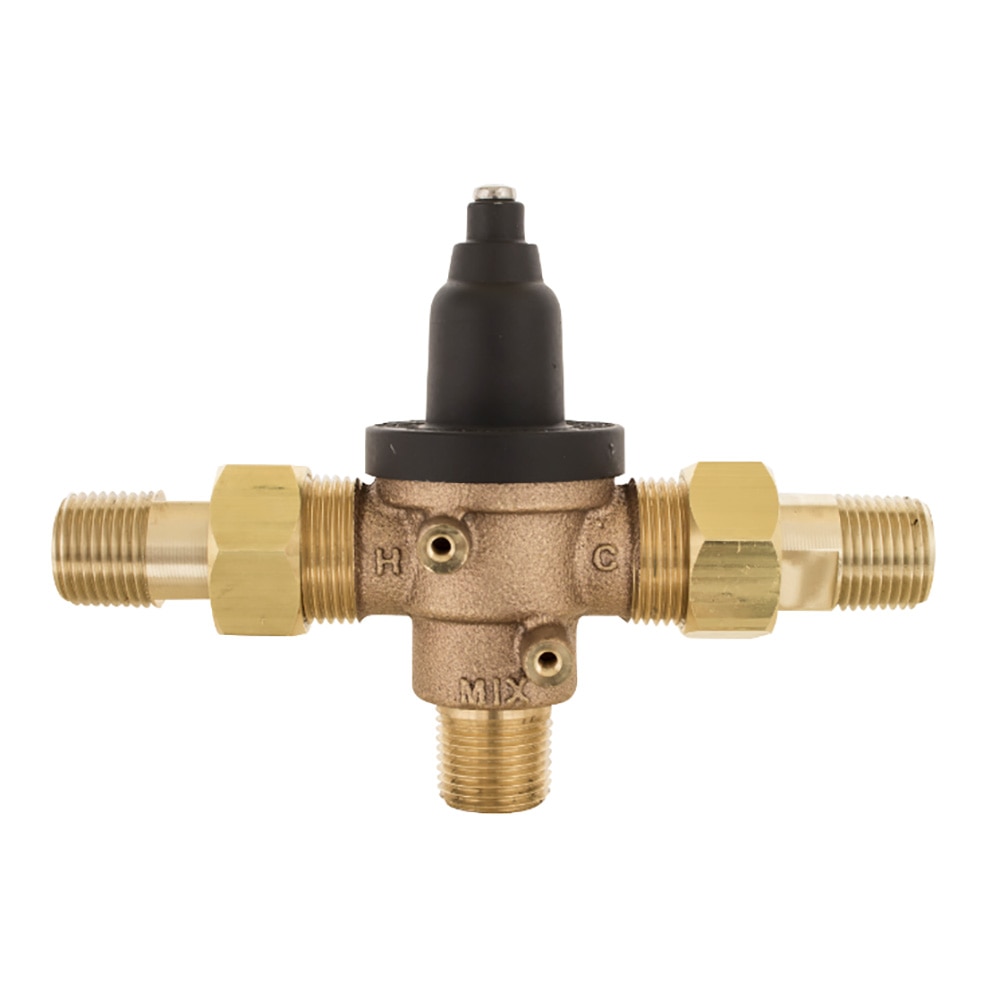

Point of Use Thermostatic Mixing Valve, 95–125 Degree F Range with 1/2 Inch NPT Tailpiece Connections, ASSE 1070

This thermostatic mixing valve delivers precise temperature control for point‑of‑use commercial applications, ensuring safe and consistent tempered water supply at sinks, faucets, and washfountains. Built with a reliable wax‑filled thermostat and a thermoplastic polymer cartridge, the valve maintains stable performance even under demanding operating conditions.

Its lead‑free brass design and 1/2‑inch NPT tailpiece connections allow seamless integration into potable water systems while meeting modern plumbing compliance standards. The adjustable set point supports a temperature range of 95 to 125 degrees Fahrenheit, helping facilities adhere to regulations for safe water delivery.

With integral check valves on the supply inlets and dirt‑ and lime‑resistant construction, the valve minimizes maintenance needs and protects system integrity. Factory assembly and testing ensure reliable operation from initial installation. Universal mounting capability and optional bracket compatibility simplify setup in both new construction and retrofit installations.

Designed for commercial environments such as healthcare facilities, schools, and retail restrooms, this mixing valve supports flow rates up to 8 GPM at 45 PSI. Its maximum operating pressure of 125 PSI and maximum inlet temperature of 180 degrees Fahrenheit allow it to perform effectively in a wide range of plumbing systems.

• Rated for a maximum operating pressure of 125 PSI.
• Lead‑free design compliant with NSF/ANSI 372 requirements.
• Supports hot inlet temperatures up to 180 degrees Fahrenheit.
• Universal mounting capability with an optional mounting bracket.
• Factory assembled and tested for reliable out‑of‑box performance.
• Adjustable set point supports a 95–125°F operating temperature range.
• Utilizes a reliable wax‑filled thermostat for accurate temperature regulation.
• Features a thermoplastic polymer cartridge for long‑lasting internal durability.
• Integral check valves on inlets help prevent backflow and protect water quality.
• Includes 1/2‑inch copper and 1/2‑inch NPT tailpiece connections for flexible installation.
