T&S Brass
ChekPoint 8 In Deck Mount Electronic Sensor Glass & Bottle Filler
Detailed Description

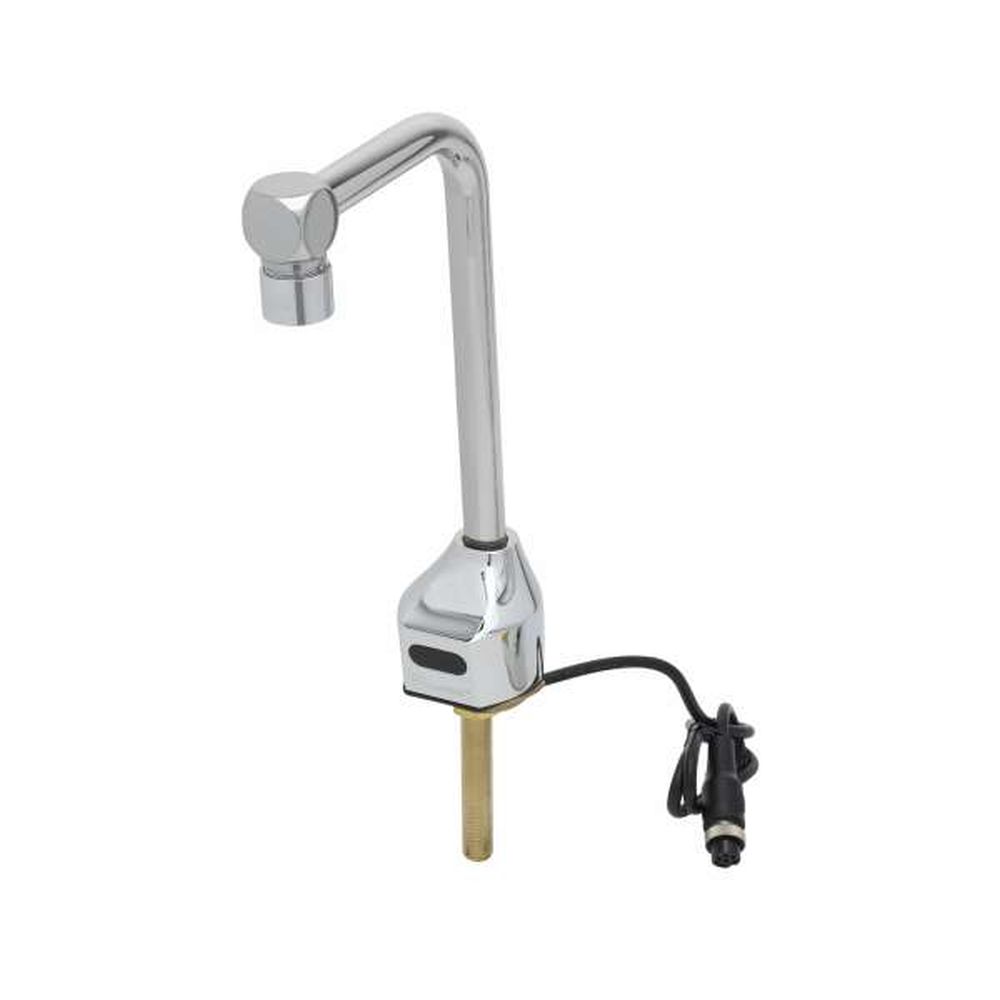

CheckPoint 8 inch high single-hole deck mount electronic sensor glass filler with polished chrome plated brass body and 4-5/8 inch high arc rigid nozzle, 1.5 GPM vandal resistant laminar device with anti-microbial coating, AC/DC control module with internal flow control setting switches, and 18 inch flexible stainless steel supply hose with 3/8 inch compression connection. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.
Features & Benefits
- 40-140 Fahrenheit
- 20-125 PSI pressure
- 8 Inch high glass filler
- 4-5/8 In high arc rigid nozzle
- LED low battery indicator light
- Polished chrome plated brass body
- Plug-in AC transformer or (4) AA battery (DC) options
- AC/DC Control module with internal flow control setting switches
- 1.5 GPM vandal-resistant laminar device with anti-microbial coating
- 18" Flexible stainless steel supply hose with 3/8" compression connection
Specifications
| Manufacturer (Brand) | T&S Brass |
|---|---|
| Manufacturer Item Number | EC-1210-08 |
| UPC | 671262851442 |
| Weight | 6.35 |
| UOM | Eaches |
| Flow Rate | 1.15 GPM |
| Mounting Style | Deck Mount |
| Restrictions and Compliance |  see PROP 65 WARNING WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov |
